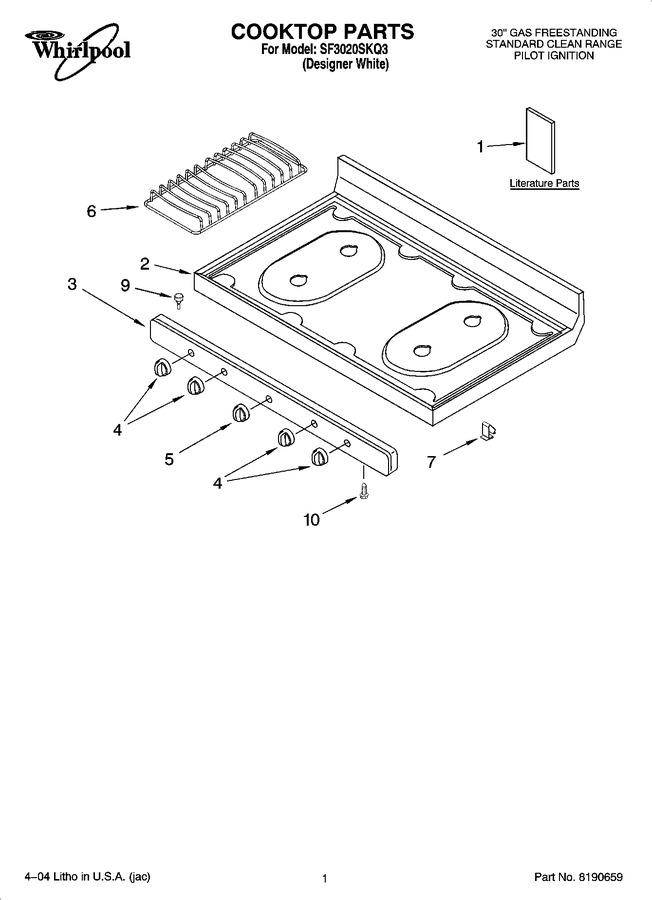

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT98014963 | Literature Parts (instructions Installation) |
|
- | |||||
| 1 | LIT98015589 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT98014376 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT98007130 | Literature Parts (safer Cooking Tips) |
|
- | |||||
| 2 | 98009707 | Cooktop (white) |
|
- | |||||
| 3 | 98013495 | Panel, Manifold |
|
- | |||||
| 4 | WP98006102 | Knob, Burner (4) (Replaces: 98006102) |
|
$ 17.53 | |||||
| 5 | 98006103 | Knob, Thermostat |
|
- | |||||
| 6 | 8190014 | Grate, Burner (2) (Replaces: 98013747) |
|
- | |||||
| 7 | W11229684 | Clip, Cooktop (2) (Replaces: 98004722) |
|
$ 10.67 | |||||
| 9 | W10831827 | Bumper, Cooktop (Replaces: 98013389) |
|
- | |||||
| 10 | W11233072 | Screw (3) (Replaces: 98005000) |
|
Immediately | $ 12.62 |
