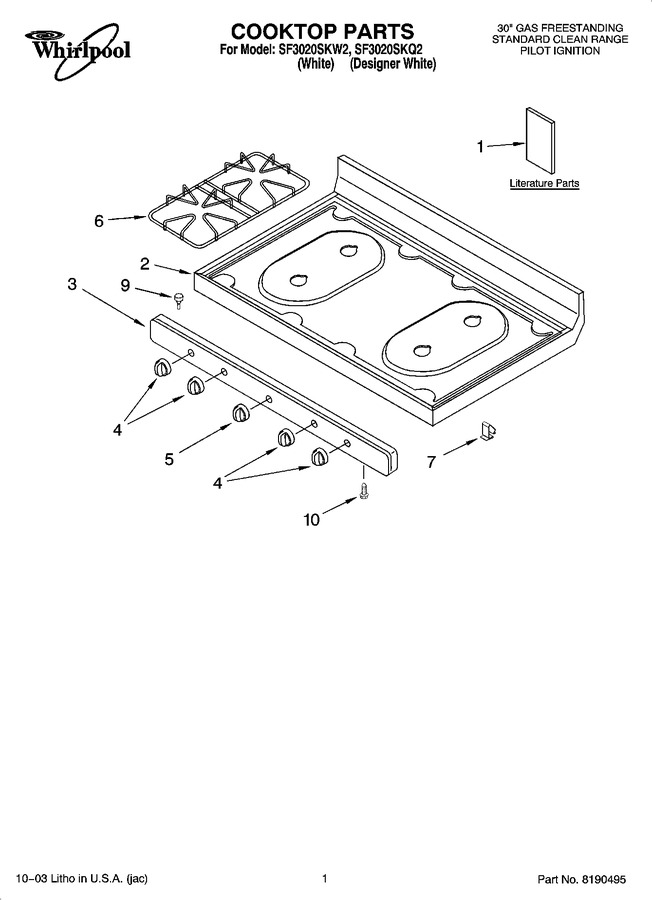

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT98014106		Literature Parts (instructions Installation)		Appelez-nous	-
1	LIT98007121		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT98014376		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT98007130		Literature Parts (safer Cooking Tips)		Appelez-nous	-
2	98009707		Cooktop (white)		Appelez-nous	-
3	98013495		Panel, Manifold (white)		Appelez-nous	-
3	98009450		Panel, Manifold (black)		Appelez-nous	-
4	WP98006102		Knob, Burner (4) (white)   (Replaces: 98006102)				$ 17.53
4	WP98006100		Knob, Burner (4) (black)   (Replaces: 98006100)				$ 18.09
5	98006103		Knob, Thermostat (white)		Appelez-nous	-
5	98006101		Knob, Thermostat (black)		Appelez-nous	-
6	8190014		Grate, Burner (2) (black)   (Replaces: 98009286)		Appelez-nous	-
6	8190014		Grate, Burner (2) (gray)   (Replaces: 98013747)		Appelez-nous	-
7	W11229684		Clip, Cooktop (2)   (Replaces: 98004722)				$ 10.67
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw (3)   (Replaces: 98005000)			Immediately	$ 12.62
