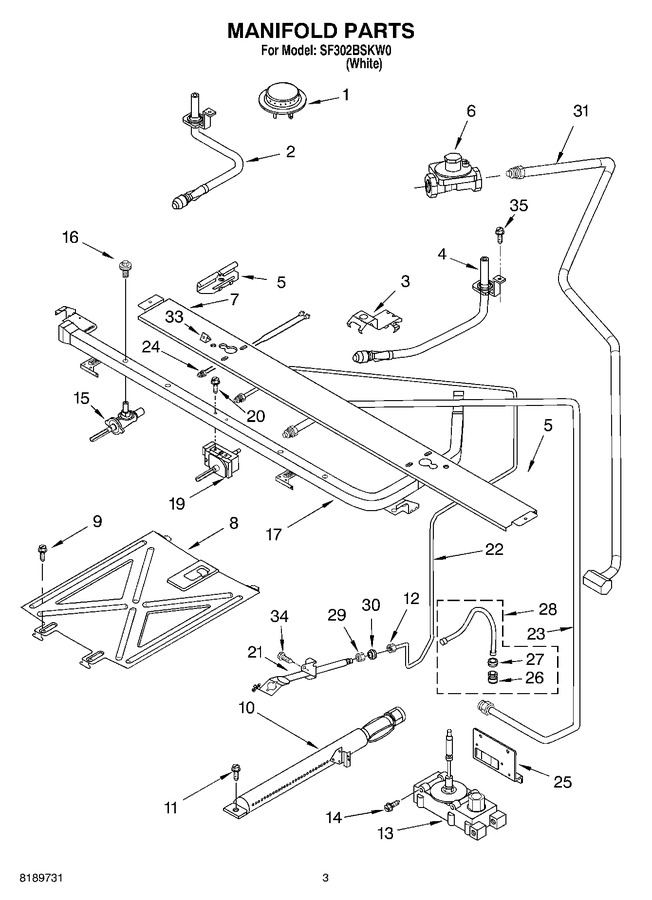

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Backguard


03 - Manifold


04 - Chassis


05 - Oven And Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98007369		Burner, Top (4)		Appelez-nous	-
2	6610259		Venturi, Front (2)		Appelez-nous	-
3	98005500		Brkt., Venturi (4)		Appelez-nous	-
4	6610260		Venturi, Rear (2)		Appelez-nous	-
5	98007237		Tube, Flash (2)		Appelez-nous	-
6	98004418		Regulator		Appelez-nous	-
7	98005760		Support, Burner		Appelez-nous	-
8	98003849		Spreader, Flame		Appelez-nous	-
9	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
10	98004315		Burner, Oven		Appelez-nous	-
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	98005514		Fitting, Tube		Appelez-nous	-
13	98005639		Valve, Oven		Appelez-nous	-
14	98005929		Screw		Appelez-nous	-
15	98005574		Valve, Burner (4)				$ 117.35
16	W11428245		Bolt, Valve Mtg   (Replaces: 98005521)		Appelez-nous	-
17	98010086		Pipe, Manifold		Appelez-nous	-
18	98007127		Sleeve, 3/8``		Appelez-nous	-
19	98003983		Thermostat		Appelez-nous	-
20	98005662		Bolt, T-stat Mtg		Appelez-nous	-
21	98004302		Pilot, Oven		Appelez-nous	-
22	WP98004310		Tubing (t-stat To Oven Pilot)   (Replaces: 98004310)				$ 94.03
23	98004309		Tubing (t-stat To Oven Valve)		Appelez-nous	-
24	98007238		Tubing, Pilot		Appelez-nous	-
25	98005708		Bracket, Valve		Appelez-nous	-
26	98005507		Nut, Tubing		Appelez-nous	-
27	98007127		Sleeve, Tubing		Appelez-nous	-
28	98008930		Tubing, Oven		Appelez-nous	-
29	98005562		Nut, Fitting		Appelez-nous	-
30	98007116		Sleeve, 3/16``		Appelez-nous	-
31	98008977		Tubing, Inlet		Appelez-nous	-
32	98005927		Nut, Loxit		Appelez-nous	-
33	98007226		Cover, Pilot		Appelez-nous	-
34	98005658		Screw		Appelez-nous	-
35	98005978		Lp Spud Kit (for Use With Lp)		Appelez-nous	-
35	W10837674		Screw   (Replaces: 98010029)				$ 6.90
