01 - Cavity
02 - Control Panel
03 - Door
04 - Front/back Panel
05 - Strirer/miscellaneous
SELECT A DIAGRAM
New Model Search:

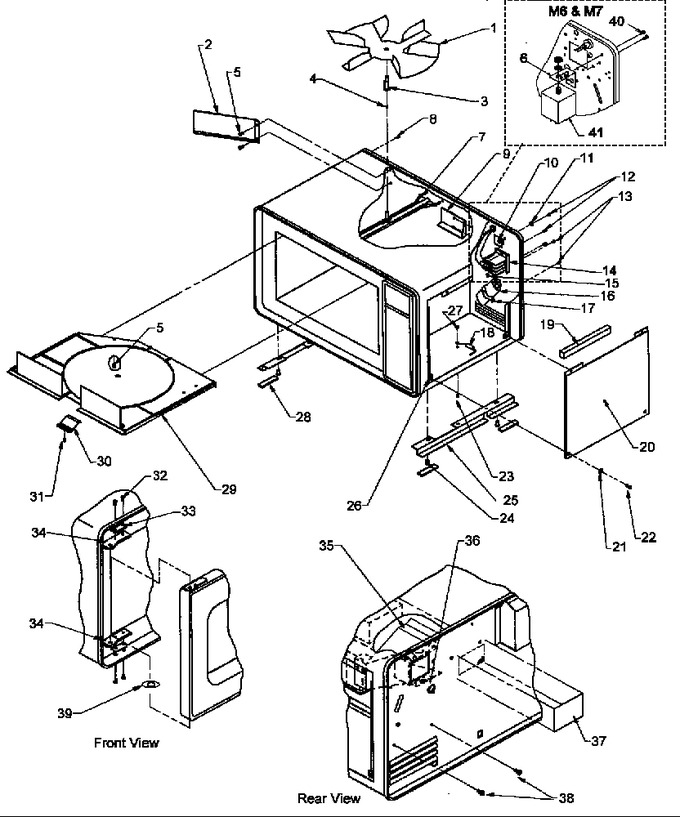

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10826002Q | Blade, Stirrer |
|
- | |||||
| 2 | 40365P01 | Deflector |
|
- | |||||
| 3 | M2D571 | Insert Stirrer Kit |
|
- | |||||
| 4 | 38321P01 | Ball |
|
- | |||||
| 5 | 5039-T | .187 Dia Push Rivet |
|
- | |||||
| 6 | 12102701 | Brkt-line Filter |
|
- | |||||
| 7 | 40357P01 | Support Stirrer |
|
- | |||||
| 8 | Y00000000 | See Note Screw |
|
- | |||||
| 9 | 40375P01 | Deflector |
|
- | |||||
| 10 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 11 | M0272503 | Washer |
|
- | |||||
| 12 | Y00000000 | See Note Screw-mach |
|
- | |||||
| 13 | 5027-ZZ | Screw |
|
- | |||||
| 14 | 30282P01 | Termnl Block |
|
- | |||||
| 15 | 5012-TT | Nut K |
|
- | |||||
| 16 | 10366905 | Capacitor |
|
- | |||||
| 17 | 26046P01 | Bracket |
|
- | |||||
| 18 | WP13091701 | Rectifier (Replaces: B8383102) |
|
$ 31.71 | |||||
| 19 | 24642P01 | Foamx(bl) 1 Pc.= 1 Ft. |
|
- | |||||
| 20 | M53D54 | Access Pnl Kit |
|
- | |||||
| 21 | Y00000000 | See Note Washer-lock |
|
- | |||||
| 22 | 5145-E | No.8 Ab X 1/2`` Crow Foot Hd Scr |
|
- | |||||
| 23 | M1D888 | Screw K |
|
- | |||||
| 24 | 5067-S | .156 Pop Rivet |
|
- | |||||
| 25 | 43855P01 | Rail Support |
|
- | |||||
| 26 | 40558P01 | Clip |
|
- | |||||
| 27 | Y00000000 | See Note Nut |
|
- | |||||
| 28 | M2D451 | Tape 8-ft/pkg Kit |
|
- | |||||
| 29 | 44103P01 | Stirrer Cover |
|
- | |||||
| 30 | 3010002701 | Cover, Stirrer Support |
|
- | |||||
| 31 | 5524122001 | Plastic Fastener |
|
- | |||||
| 32 | 5149-C | No.8-32 Pan Hd Mach Scr (25) |
|
- | |||||
| 33 | 45540P01 | Shim-hinge |
|
- | |||||
| 34 | 4180032601 | Assy, Hinge |
|
- | |||||
| 35 | M65D301 | Duct Cavity |
|
- | |||||
| 36 | A4554808 | Snap Bushing |
|
- | |||||
| 37 | 5079-D | Polyester Tape 2.75`` |
|
- | |||||
| 38 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 39 | M2D774 | Ia Nylon Flat Washer |
|
- | |||||
| 40 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 41 | B5717801 | Line Filter Xx |
|
- |
