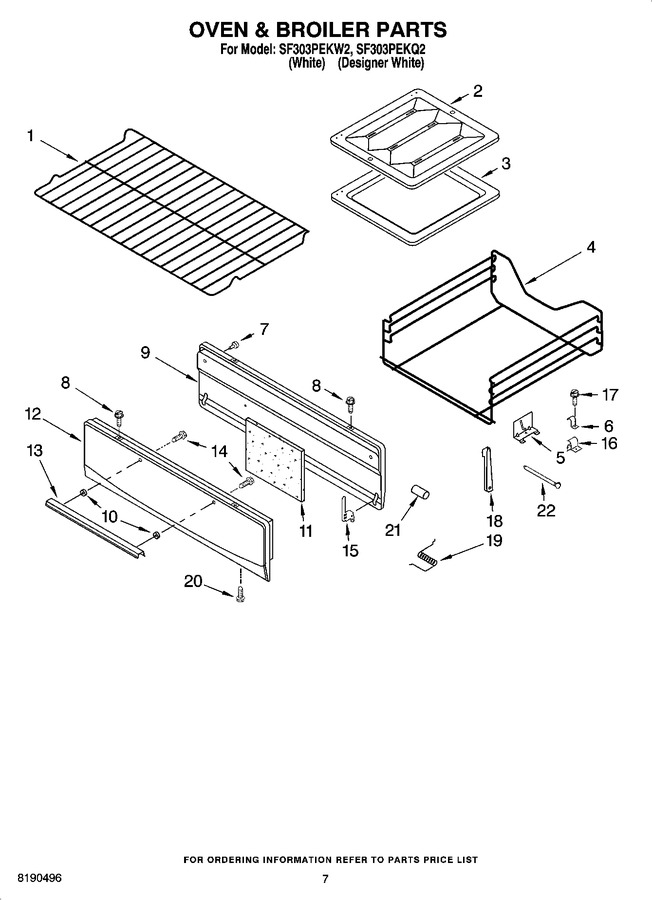

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98014135		Rack, Oven (2)		Appelez-nous	-
2	WP98003480		Grill, Broiler   (Replaces: 98003480)				$ 89.69
3	WP98016005		Pan, Broiler   (Replaces: 98003479)				$ 77.97
4	98016570		Rack, Broiler   (Replaces: 98013751)		Appelez-nous	-
5	98004761		Bracket, Rack		Appelez-nous	-
6	98004715		Guide, Rack (4)		Appelez-nous	-
7	98004723		Bumper, Door (2)		Appelez-nous	-
8	3196166		Screw   (Replaces: 98006727)				$ 6.31
9	98004698		Liner, Door		Appelez-nous	-
10	98004773		Spacer		Appelez-nous	-
11	98012545		Insulation, Door		Appelez-nous	-
12	98009337		Panel, Door		Appelez-nous	-
13	98006623		Handle, Brlr Door		Appelez-nous	-
14	98006644		Screw		Appelez-nous	-
15	W11499074		Hanger, Brlr Door   (Replaces: 98003790)		Appelez-nous	-
16	98008341		Cover, Guide		Appelez-nous	-
17	W10837731		Screw   (Replaces: 98006633)				$ 7.07
18	98003791		Support, Hinge		Appelez-nous	-
19	98008379		Spring, Broiler (left Hand)		Appelez-nous	-
19	98008380		Spring, Broiler (right Hand)		Appelez-nous	-
20	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
21	98007396		Spacer		Appelez-nous	-
22	98004053		Pin, Hinge (2)		Appelez-nous	-
