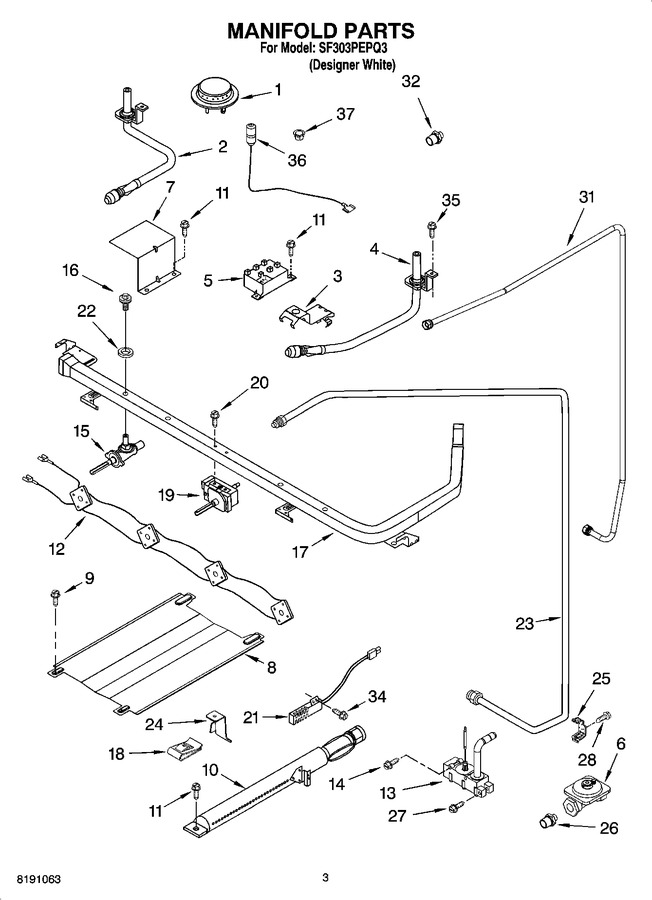

SELECT A DIAGRAM

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98004410		Burner, Top (4)   (Replaces: 98004410)				$ 75.28
2	WP661243		Venturi, Front (2)		Appelez-nous	-
3	98005500		Brkt., Venturi (4)		Appelez-nous	-
4	WP6610244		Venturi, Rear (2)   (Replaces: 98005862)				$ 278.60
5	W11590249		Spark Module   (Replaces: 6610341)				$ 21.01
6	98007411		Regulator				$ 130.98
7	98007192		Cover, Module		Appelez-nous	-
8	98015099		Spreader, Flame				$ 243.31
9	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
10	WP98012138		Burner, Oven   (Replaces: 98012138)				$ 200.93
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	WPW10361492		Harness, Switch   (Replaces: 98014545)				$ 181.52
13	WP98014893		Valve, Oven   (Replaces: 98014893)				$ 141.73
14	W10837731		Screw   (Replaces: 98006633)				$ 7.07
15	98005574		Valve, Burner (4)				$ 117.35
16	W11428245		Bolt, Valve Mtg   (Replaces: 98005521)		Appelez-nous	-
17	98013577		Pipe, Manifold		Appelez-nous	-
18	98009179		U-nut				$ 12.02
19	WPW10641988		Thermostat   (Replaces: 98003984)				$ 106.17
20	WP3400882		Bolt, T-stat Mtg   (Replaces: 98005663)			Immediately	$ 6.47
21	W10918546		Igniter, Oven (oven Pilot)   (Replaces: 98005652)			Immediately	$ 55.40
22	98007132		Washer, Valve (4)		Appelez-nous	-
23	98007428		Tubing (regltr To Oven Valve)		Appelez-nous	-
24	98013314		Locator, Burner		Appelez-nous	-
25	98007410		Bracket, Regulator		Appelez-nous	-
26	98007431		Fitting 3/8to9/16				$ 110.58
27	98013634		Screw		Appelez-nous	-
28	1180823		Screw		Appelez-nous	-
31	98007429		Tubing, Inlet		Appelez-nous	-
32	98007430		Fitting 1/4to9/16		Appelez-nous	-
34	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
35	W10837674		Screw   (Replaces: 98004484)				$ 6.90
36	WPW10209656		Igniter, Top (lf, Rr)   (Replaces: 98014515)			Immediately	$ 73.07
36	WPW10209656		Igniter, Top (rf)   (Replaces: 98014514)			Immediately	$ 73.07
36	WPW10209657		Igniter, Top (lr)   (Replaces: 98014516)				$ 48.56
37	W10854964		Lp Orifice Kit (for Use With Lp)   (Replaces: 98013674)				$ 102.65
37	98013675		Nat Orifice Kit (for Use With Natural Gas)		Appelez-nous	-
37	WPW10278150		Clip, Igniter   (Replaces: 98015032)				$ 40.61
37	N/A		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
