02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

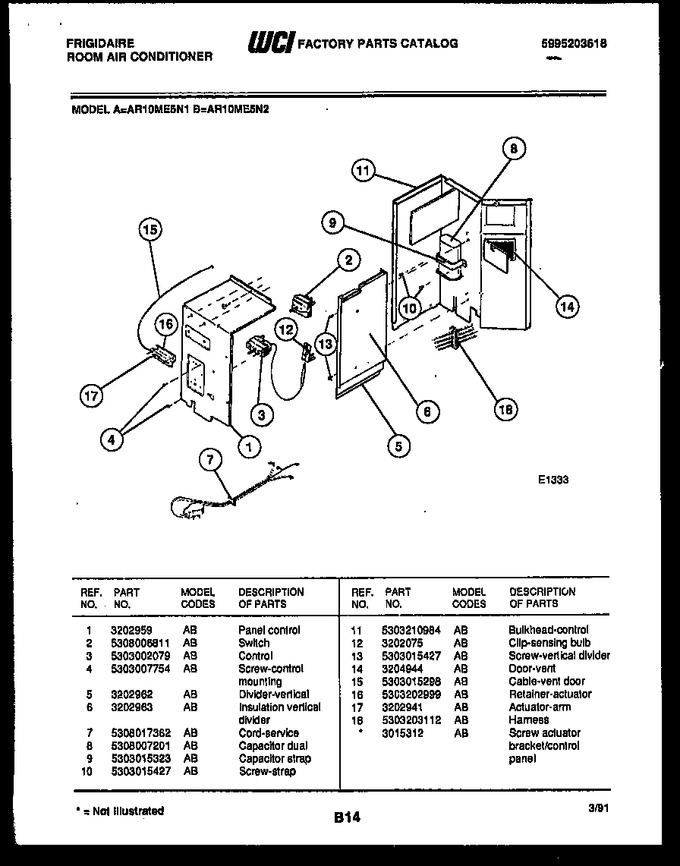

| 1 | 3202959 | Panel-control |
|
- | |||||
| 2 | 5308006811 | Switch |
|
$ 33.65 | |||||
| 3 | 5303002079 | Control |
|
- | |||||
| 4 | 5303007754 | Screw-control Mounting |
|
- | |||||
| 5 | 3202962 | Divider-vertical |
|
- | |||||
| 6 | 3202963 | Insulation - Vertical Divider |
|
- | |||||
| 7 | 5308017362 | Cord-service |
|
- | |||||
| 8 | 5308007201 | Capacitor (dual) |
|
- | |||||
| 9 | 5303015323 | Capacitor (strap) |
|
- | |||||
| 10 | 5303015427 | Screw-strap |
|
- | |||||
| 11 | 5303210984 | Bulkhead - Control |
|
- | |||||
| 12 | 3202075 | Clip-sensing Bulb |
|
- | |||||
| 13 | 5303015427 | Screw - Vertical Divider |
|
- | |||||
| 14 | 3204944 | Door-vent |
|
- | |||||
| 15 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 16 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 17 | 3202941 | Actuator-arm |
|
- | |||||
| 18 | 5303203112 | Harness |
|
- | |||||
| *36432 | 3015312 | Screw Actuator Bracket/control Panel |
|
- |
