01 - Body/cavity
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

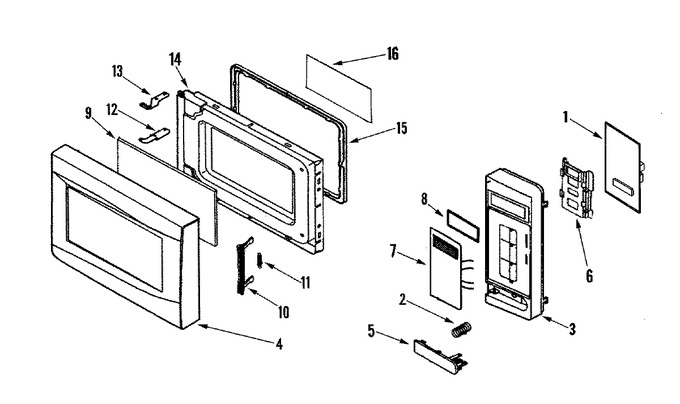

| 1 | YRASD2LED02 | Assy Pcb Parts ; Umc1071aaw,12 | 10 |
|
- | ||||
| 2 | DE61-70076A | Spring, Button | 10 |
|
$ 20.70 | ||||
| 3 | DE64-00534D | Control-panel;umc1071aaw,abs(v | 10 |
|
- | ||||
| 5 | DE66-20281P | Button, Push (wht) | 10 |
|
- | ||||
| 6 | DE61-00666A | Led Holder | 10 |
|
- | ||||
| 7 | DE34-00210C | Switch Membrane;umc1071aaw,-,- | 10 |
|
- | ||||
| 8 | DE64-00533A | Window-display | 10 |
|
- | ||||
| 9 | DE67-20196A | Screen-door | 10 |
|
- | ||||
| 10 | DE64-00210A | Door-key | 10 |
|
- | ||||
| 11 | DE61-00198A | Spring-key | 10 |
|
- | ||||
| 12 | DE61-00146A | Hinge-lower | 10 |
|
- | ||||
| 13 | DE61-00145A | Hinge-upper | 10 |
|
- | ||||
| 14 | DE94-00351B | Assy Door-e(coating) | 10 |
|
- | ||||
| 15 | DE64-40008B | Door-c | 10 |
|
- | ||||
| 16 | DE64-00221B | Film-door | 10 |
|
- |
