SELECT A DIAGRAM
02 - Oven , Literature
03 - Manifold
04 - Oven Door And Broiler
05 - Backguard
06 - Cook Top
SELECT A DIAGRAM
New Model Search:

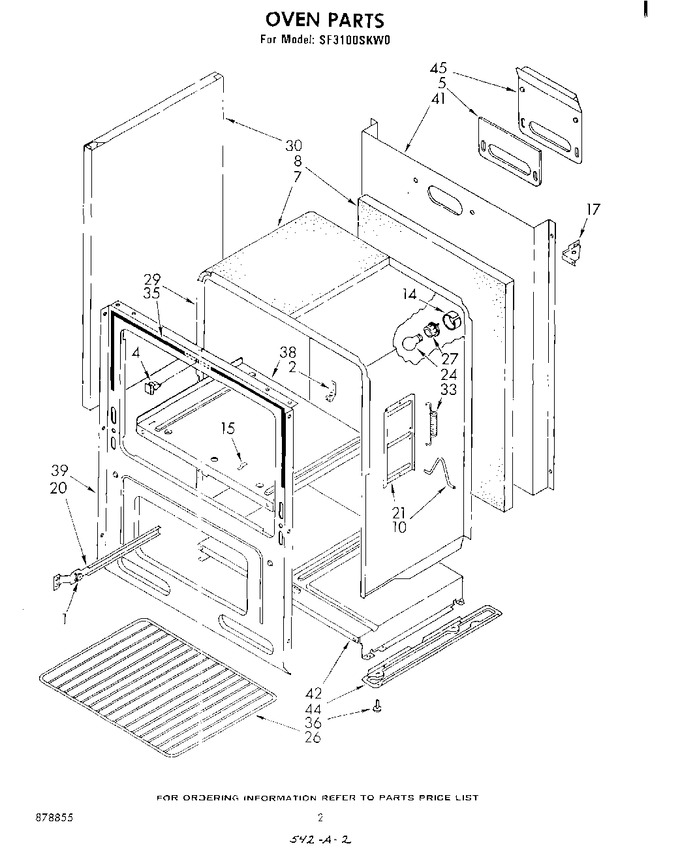

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 878077 | Bearing, Roller (4) |
|
- | |||||
| 2 | 98005642 | Clip, Thermostat Bulb (Replaces: 878081) |
|
Immediately | $ 74.64 | ||||
| 4 | 878084 | Clip, Door Seal |
|
- | |||||
| 5 | 878088 | Gasket, Vent Deflector |
|
- | |||||
| 7 | WPW10208653 | Insulation, Oven Wrap (Replaces: 878092) |
|
Immediately | $ 49.92 | ||||
| 8 | WPW10208653 | Insulation, Oven Back (Replaces: 878093) |
|
Immediately | $ 49.92 | ||||
| 10 | 878094 | Link, Oven Door Spring (2) |
|
- | |||||
| 14 | 878103 | Sleeve, Light Hole |
|
- | |||||
| 15 | 878107 | Clip, Oven Bottom Plate |
|
- | |||||
| 17 | 878718 | Bracket, Corner Support (left Side) |
|
- | |||||
| 17 | 878717 | Bracket, Corner Support (right Side) |
|
- | |||||
| 20 | 878114 | Track, Broiler (left Side) |
|
- | |||||
| 20 | 878113 | Track, Broiler (right Side) |
|
- | |||||
| 21 | 878117 | Cover, Hinge (2) |
|
- | |||||
| 24 | 8009 | Bulb, Oven Light (Replaces: 878122) |
|
Immediately | $ 16.80 | ||||
| 26 | 878123 | Rack, Oven (2) |
|
- | |||||
| 27 | 878124 | Socket, Oven Light |
|
- | |||||
| 30 | 878461 | Panel, End (2) (coffee) |
|
- | |||||
| 30 | 878129 | Panel, End (2) (almond) |
|
- | |||||
| 30 | 878128 | Panel, End (2) (white) |
|
- | |||||
| 30 | 878462 | Panel, End (2) (harvest Gold) |
|
- | |||||
| 30 | 879081 | Panel, End (2) (toast) |
|
- | |||||
| 30 | 879082 | Panel, End (2) (platinum) |
|
- | |||||
| 33 | 878142 | Spring, Oven Door (2) |
|
- | |||||
| 35 | 878003 | Seal, Oven Door (top) |
|
- | |||||
| 35 | 878004 | Seal, Oven Door (side (2)) |
|
- | |||||
| 36 | 878417 | Screw, Leveling (4) |
|
- | |||||
| 38 | 878822 | Plate, Oven Bottom |
|
- | |||||
| 39 | 878178 | Front, Main |
|
- | |||||
| 41 | 878179 | Back, Main |
|
- | |||||
| 42 | 878180 | Bottom, Main |
|
- | |||||
| 44 | 878181 | Runner, Base (left Side) |
|
- | |||||
| 44 | 878182 | Runner, Base (right Side) |
|
- | |||||
| 45 | 878867 | Guide, Use & Care |
|
- | |||||
| 45 | 878056 | Diagram, Wiring |
|
- | |||||
| 45 | 878063 | Instructions, Installation |
|
- | |||||
| 45 | 878477 | Deflector, Vent |
|
- | |||||
| 45 | 878855 | List, Repair Parts |
|
- |
