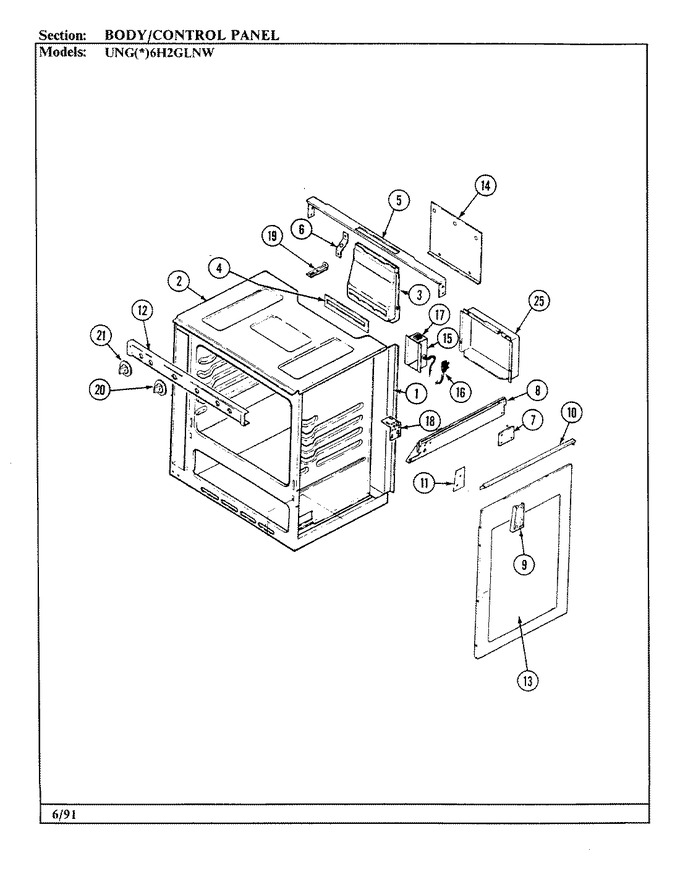

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
1	4002F063-80		Back, Main	1	Appelez-nous	-
2	4011F134-80		Bottom, Burner Box	1	Appelez-nous	-
3	4006W017-80		Flue Assy.	1	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
4	7201P006-60		Gasket	1	Appelez-nous	-
5	3802F038-70		Brace Top Rear	1	Appelez-nous	-
6	3802F037-34		Brace	1	Appelez-nous	-
7	5720A002-34		Hinge, Main Top R.h.	1	Appelez-nous	-
7	5720A009-34		Hinge, Main Top L.h.	1	Appelez-nous	-
8	4016F002-80		Side, Burner Box Right	1	Appelez-nous	-
8	4016F006-80		Side, Burner Box Left	1	Appelez-nous	-
9	7720P055-60		Trim, Left	1	Appelez-nous	-
9	7720P058-60		Trim, Right	1	Appelez-nous	-
10	7720P059-60		Trim	1	Appelez-nous	-
10	7720P056-60		Trim	1	Appelez-nous	-
11	2610F002-32		Trim	1	Appelez-nous	-
11	2610F001-32		Trim	1	Appelez-nous	-
12	2616F083-74		Panel, Control (almond)	1	Appelez-nous	-
12	WP4159193		Screw   (Replaces: 7118P004-60)	1			$ 4.29
13	2618F075-74		Panel, Side (almond)	1	Appelez-nous	-
13	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
13	7101P250-60		Screw, Trim	1	Appelez-nous	-
14	3601F060-51		Baffle	1	Appelez-nous	-
15	4006F005-80		Box, Disconnect	1	Appelez-nous	-
16	7402P011-60		Cord, Power	1	Appelez-nous	-
16	8007P003-60		Bushing, Snap	1	Appelez-nous	-
17	7401P006-60		Block, Disconnect	1	Appelez-nous	-
18	3801F053-34		Bracket	1	Appelez-nous	-
19	3801F198-51		Bracket, Tie-down	1	Appelez-nous	-
20	7711P363-60		Knob, Thermostat	1	Appelez-nous	-
21	7711P065-60		Knob, Valve	1	Appelez-nous	-
21	3802F014-80		Brace	1	Appelez-nous	-
21	7733P026-60		Knob, Valve	1	Appelez-nous	-
