01 - Body
02 - Control Panel
03 - Door/drawer

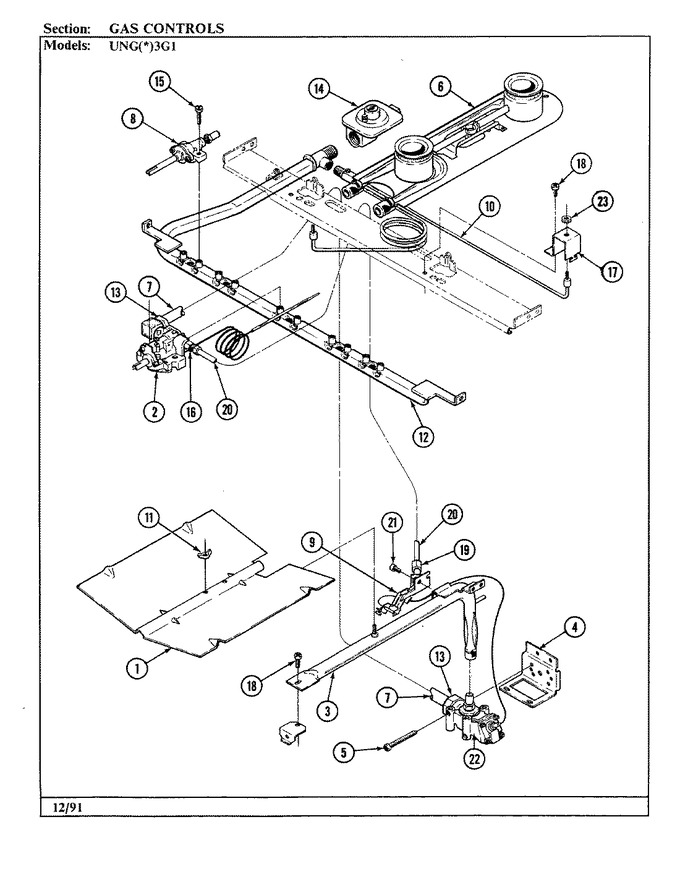

04 - Gas Controls
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 2 | 7515P032-60 | Thermostat | 59 |
|
- | ||||
| 2 | 7101P295-60 | Screw | 53 |
|
- | ||||
| 2 | 7101P010-60 | Screw, Control | 59 |
|
- | ||||
| 2 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 2 | 7515P026-60 | Thermostat | 53 |
|
- | ||||
| 2 | 7515P015-60 | Thermostat Oven | 01 |
|
- | ||||
| 3 | 3403A015-45 | Burner Oven | 56 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 01 |
|
- | ||||
| 3 | 3403D027-45 | Burner, Oven | 59 |
|
- | ||||
| 4 | 3807F120-34 | Support | 01 |
|
- | ||||
| 5 | 7101P025-60 | Screw | 01 |
|
- | ||||
| 6 | 3412A004-23 | Uni-burner Assy | 01 |
|
- | ||||
| 7 | 3414F050-44 | Tubing 3/8 X 59 | 01 |
|
- | ||||
| 7 | 3414F099-44 | Tubing, Oven (3/8``) | 59 |
|
- | ||||
| 8 | 7502P109-60 | Valve, Top Burner | 01 |
|
- | ||||
| 8 | 7502P174-60 | Valve, Top Burner | 59 |
|
- | ||||
| 8 | 7502P222-60 | Valve | 53 |
|
- | ||||
| 9 | 7432P068-60 | Lighter Pilot | 59 |
|
- | ||||
| 9 | 1566267 | Pilot Assy. | 01 |
|
- | ||||
| 10 | 7505P081-60 | Burner, Pilot | 01 |
|
- | ||||
| 10 | 7505P193-60 | Burner, Pilot (natural) | 59 |
|
- | ||||
| 11 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 12 | 7513P131-60 | Pipe Manifold | 59 |
|
- | ||||
| 12 | 7513P102-60 | Manifold Pipe | 53 |
|
- | ||||
| 12 | 7513P028-60 | Pipe, Manifold | 01 |
|
- | ||||
| 13 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 14 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 15 | 7101P044-60 | Screw, Valve | 59 |
|
- | ||||
| 15 | 7101P296-60 | Screw | 53 |
|
- | ||||
| 16 | 1555279 | Nut, 1/4`` Loxit | 01 |
|
- | ||||
| 17 | 3807F204-34 | Support, Top Pilot | 01 |
|
- | ||||
| 18 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 19 | 1555261K | Nut & Ferrule (3/16``) | 01 |
|
- | ||||
| 20 | 3414F062-44 | Tubing, 3/16`` X 54``----na | 01 |
|
- | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 22 | 7501P101-60 | Valve, Oven | 59 |
|
- | ||||
| 22 | 7501P061-60 | Valve, Oven | 01 |
|
- | ||||
| 23 | 7103P070-60 | Nut, Top Pilot | 01 |
|
- |
