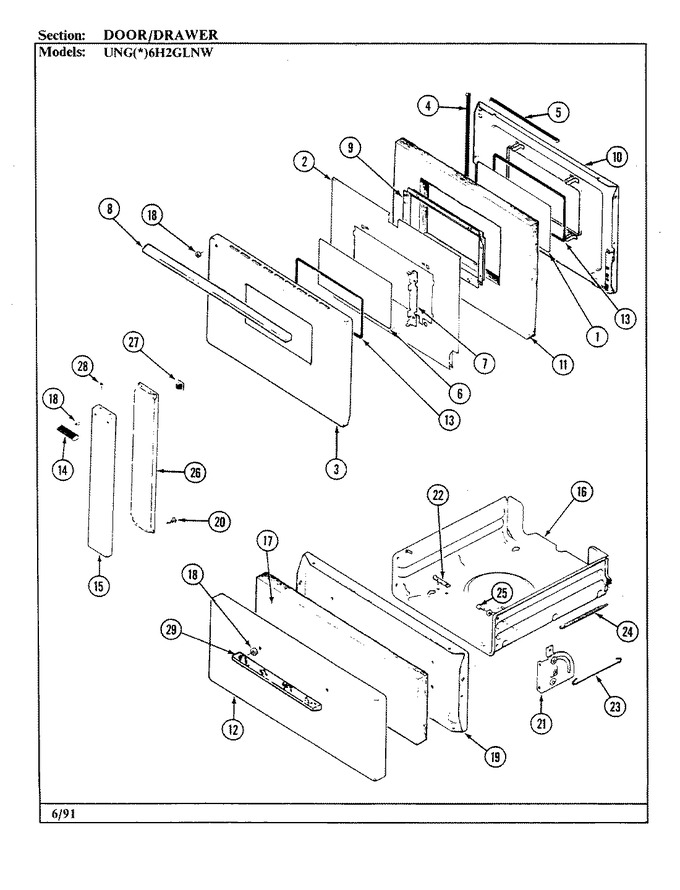

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P035-60		Glass, Door Inner		Appelez-nous	-
2	3601F094-51		Baffle, Oven Door		Appelez-nous	-
3	WP74003976		Screw W/washer   (Replaces: 7101P124-60)				$ 6.47
3	2401F100-71		Panel, Ov Dr		Appelez-nous	-
4	7212P003-60		Seal, Oven Door				$ 46.94
5	7212P025-60		Seal, Oven Door		Appelez-nous	-
5	7112P064-60		Clip, Seal		Appelez-nous	-
6	7902P051-60		Glass		Appelez-nous	-
7	3804F095-80		Retainer, Glass		Appelez-nous	-
8	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)			Immediately	$ 7.69
8	7701P030-60		Handle, Door (chr)		Appelez-nous	-
9	3603F013-80		Frame, Window----na		Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
10	2402W119-16		Lining Assy, Ov Dr		Appelez-nous	-
11	7002P012-60		Insulation, Door		Appelez-nous	-
12	2403F029-71		Panel, Drawer (wht)		Appelez-nous	-
13	7201P017-60		Gasket, Window				$ 52.69
14	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)			Immediately	$ 7.69
14	7701P009-60		Handle, Compartment Door		Appelez-nous	-
15	2409F009-71		Panel, Compartment Door - Whit		Appelez-nous	-
16	3407W010-23		Drawer Assy., Broiler		Appelez-nous	-
17	7002P002-60		Insulation		Appelez-nous	-
18	8010P020-60		Spacer, Door Handle		Appelez-nous	-
19	WP7101P126-60		Screw   (Replaces: 7101P058-60)			Immediately	$ 6.85
19	2404F028-23		Lining, Drawer		Appelez-nous	-
20	8003P003-60		Bumper		Appelez-nous	-
21	3418A063-34		Hinge, Broiler (lt)		Appelez-nous	-
21	3418A062-34		Hinge, Broiler (rt)		Appelez-nous	-
22	8002P001-60		Catch		Appelez-nous	-
22	WP74004005		Screw   (Replaces: 7101P076-60)				$ 6.95
22	7103P067-60		Lock Nut, Catch		Appelez-nous	-
23	7807P001-60		Link, Broiler		Appelez-nous	-
24	7803P014-60		Spring		Appelez-nous	-
25	7101P114-60		Screw		Appelez-nous	-
26	2408F005-80		Lining, Compartment Door		Appelez-nous	-
27	8002P013-60		Catch, Female		Appelez-nous	-
28	7101P013-60		Screw, Special		Appelez-nous	-
29	74002481		Screw, Handle   (Replaces: 7101P283-60)				$ 5.82
29	7701P012-60		Handle, Drawer (chr)		Appelez-nous	-
