SELECT A DIAGRAM

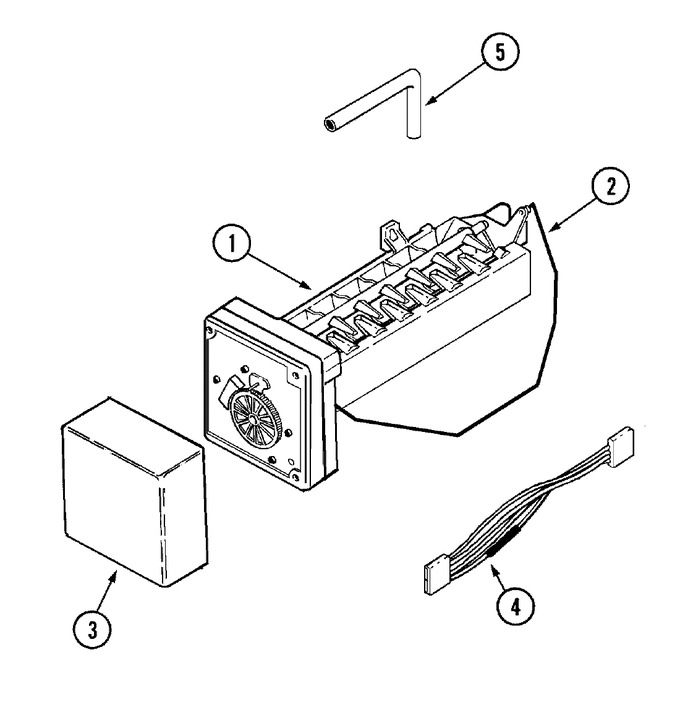

01 - Universal Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7824706Q | Ice Maker (Replaces: 68972-4) | 10 |
|
Immediately | $ 150.62 | |||
| 2 | W11807379 | Arm, Sensor (Replaces: 70142-1) | 10 |
|
Immediately | $ 54.18 | |||
| 3 | WPW10289690 | Cover Ice Maker (Replaces: 68113-1) | 10 |
|
Immediately | $ 7.56 | |||
| 4 | WP61003191 | Wire Connector (insulated) (Replaces: 61003191) | 10 |
|
$ 2.05 | ||||
| 4 | 61001593 | Wire Harness | 10 |
|
- | ||||
| 5 | 61001592 | Tube, Fill | 10 |
|
$ 26.52 |
