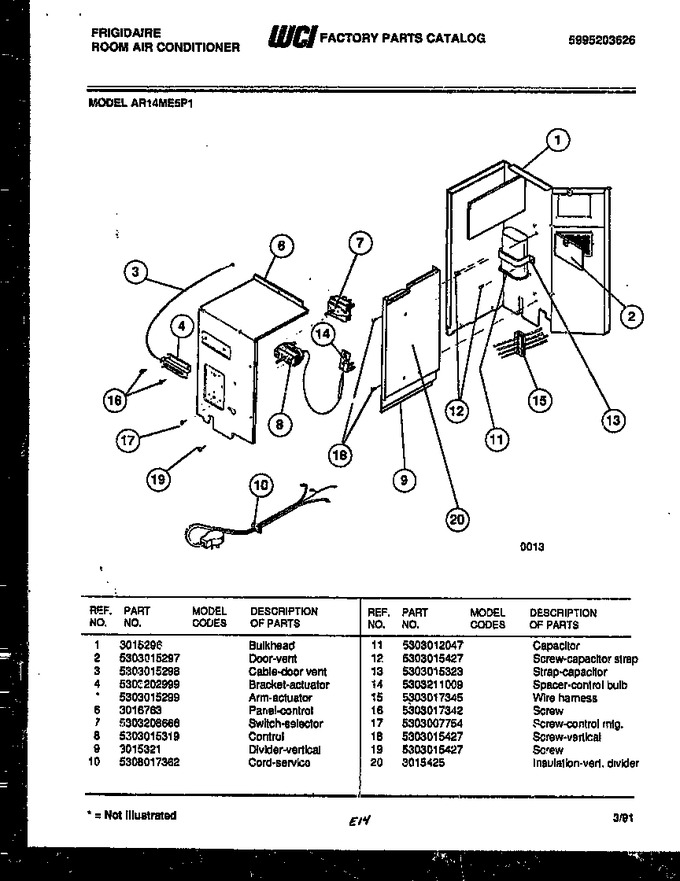

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015296 | Bulkhead |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable-door Vent |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 6 | 3016763 | Panel - Control |
|
- | |||||
| 7 | 5303208666 | Switch-selector |
|
- | |||||
| 8 | 5303015319 | Control |
|
- | |||||
| 9 | 3015321 | Divider - Vertical |
|
- | |||||
| 10 | 5308017362 | Cord-service |
|
- | |||||
| 11 | 5303012047 | Capacitor |
|
- | |||||
| 12 | 5303015427 | Screw-capacitor Strap |
|
- | |||||
| 13 | 5303015323 | Strap-capacitor |
|
- | |||||
| 14 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 15 | 5303017345 | Wire Harness |
|
- | |||||
| 16 | 5303017342 | Screw |
|
- | |||||
| 17 | 5303007754 | Screw-control Mtg. |
|
- | |||||
| 18 | 5303015427 | Screw-vertical |
|
- | |||||
| 19 | 5303015427 | Screw |
|
- | |||||
| 20 | 3015425 | Insulation-vert. Divider |
|
- | |||||
| 4A | 5303015299 | Arm-actuator (non-illustrated) |
|
- |
