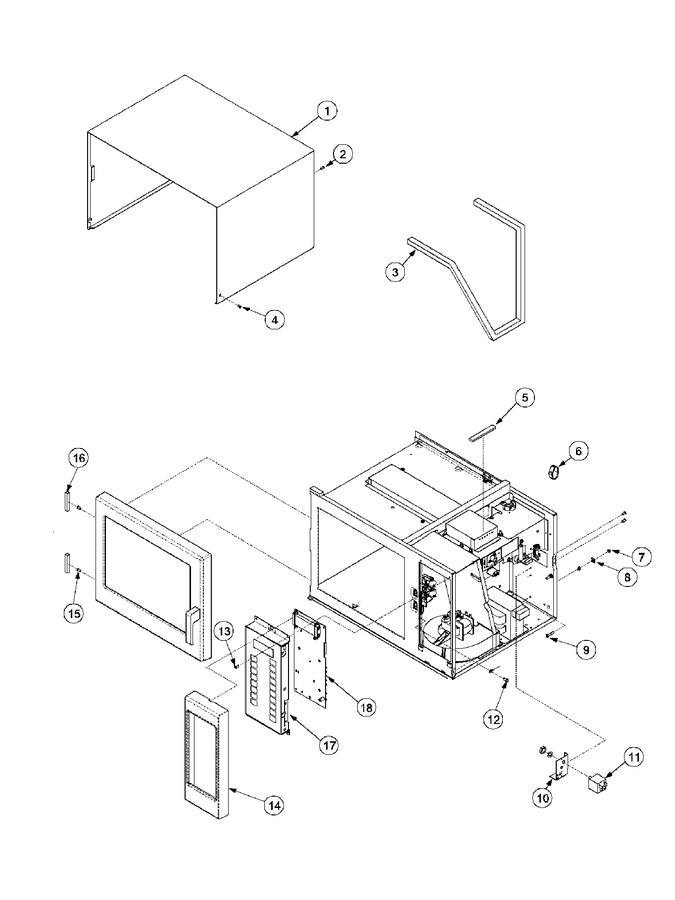

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	D7684903		Wrapper		Appelez-nous	-
002	M0231717		Screw, Tf		Appelez-nous	-
003	A3263907		Gasket - Each		Appelez-nous	-
004	M0231804		Screw, Tf		Appelez-nous	-
005	A4591129		Gasket K		Appelez-nous	-
006	M0118705		Clip, Guide		Appelez-nous	-
007	M0282021		Nut-keps		Appelez-nous	-
008	12152201		Washer-u Type		Appelez-nous	-
009	M0200843		Screw-mach		Appelez-nous	-
010	B5696109		Brkt, Line Filter		Appelez-nous	-
011	NLA		Line Filter Xx		Appelez-nous	-
012	M0231717		Screw, Tf		Appelez-nous	-
013	M0231717		Screw, Tf		Appelez-nous	-
014	59001059		Side Escutcheon-urs511		Appelez-nous	-
014	59001060		Side Escutcheon-rs511a		Appelez-nous	-
014	59001061		Side Escutcheon-des11e		Appelez-nous	-
014	NLA		Side Escutcheon-rs511		Appelez-nous	-
015	WP12990527		Screw   (Replaces: M0229716)			Immediately	$ 7.15
016	A3263904		Gasket		Appelez-nous	-
017	R9900589		Assy, Touch Panel		Appelez-nous	-
017	R9900592		Assy, Touch Panel		Appelez-nous	-
018	12495214Q		Board,hv/lv-amana Prog		Appelez-nous	-
