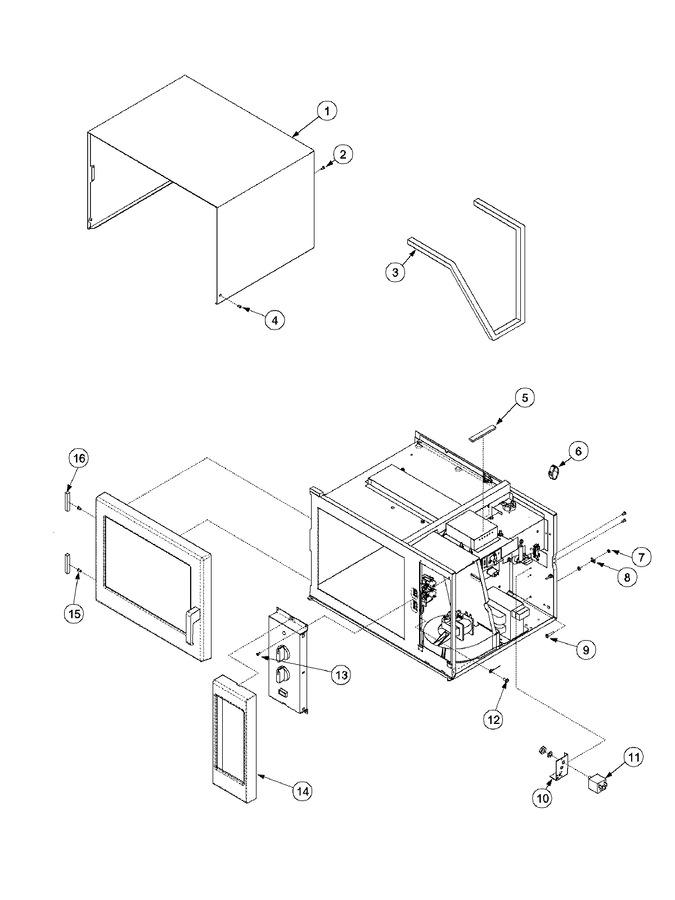

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7684913 | Wrapper,oc |
|
- | |||||
| 2 | M0231717 | Screw, Tf |
|
- | |||||
| 3 | A3263907 | Gasket - Each |
|
- | |||||
| 4 | M0231804 | Screw, Tf |
|
- | |||||
| 6 | M0118705 | Clip, Guide |
|
- | |||||
| 7 | M0282021 | Nut-keps |
|
- | |||||
| 8 | 12152201 | Washer-u Type |
|
- | |||||
| 9 | M0200843 | Screw-mach |
|
- | |||||
| 10 | B5696109 | Brkt, Line Filter |
|
- | |||||
| 11 | B5717801 | Line Filter Xx |
|
- | |||||
| 12 | M0231717 | Screw, Tf |
|
- | |||||
| 13 | M0231717 | Screw, Tf |
|
- | |||||
| 14 | 59001067 | Side Escutcheon-urs511m |
|
- | |||||
| 15 | WP12990527 | Screw (Replaces: M0229716) |
|
Immediately | $ 7.15 | ||||
| 16 | A3263904 | Gasket |
|
- |
