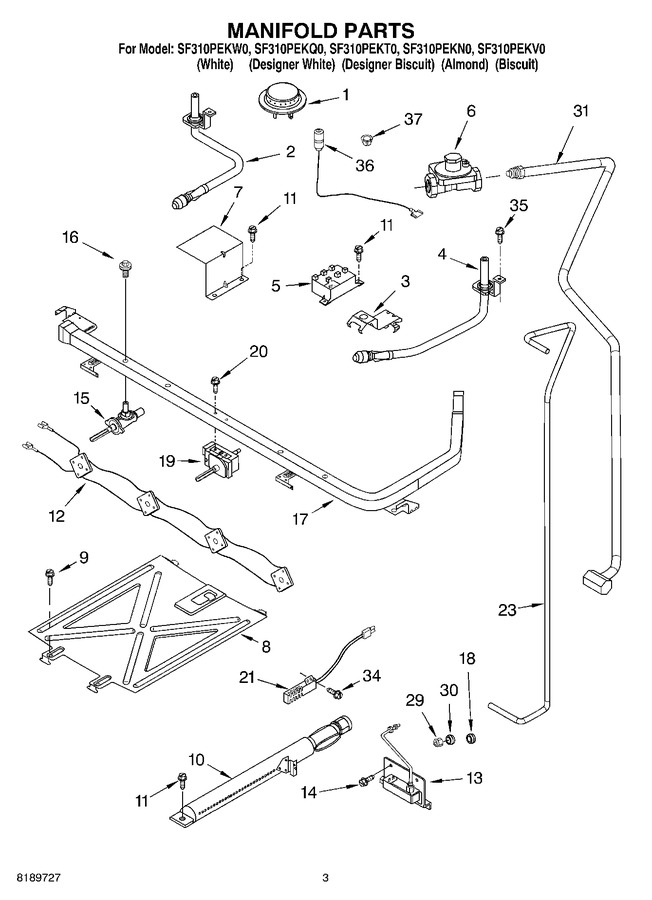

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98004410		Burner, Top (4)   (Replaces: 98004410)				$ 75.28
2	WP661243		Venturi, Front (2)		Appelez-nous	-
3	98005500		Brkt., Venturi (4)		Appelez-nous	-
4	WP6610244		Venturi, Rear (2)   (Replaces: 6610244)				$ 278.60
5	W11590249		Spark Module   (Replaces: 6610250)				$ 21.01
6	98005520		Regulator		Appelez-nous	-
7	98007192		Cover, Module		Appelez-nous	-
8	98003849		Spreader, Flame		Appelez-nous	-
9	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
10	98004314		Burner, Oven		Appelez-nous	-
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	98005561		Harness, Switch		Appelez-nous	-
13	98011275		Valve, Oven		Appelez-nous	-
14	W10837731		Screw   (Replaces: 98006633)				$ 7.07
15	98005574		Valve, Burner (4)				$ 117.35
16	W11428245		Bolt, Valve Mtg   (Replaces: 98005521)		Appelez-nous	-
17	98010087		Pipe, Manifold		Appelez-nous	-
18	98007127		Sleeve, 3/8``		Appelez-nous	-
19	WPW10641988		Thermostat   (Replaces: 98003984)				$ 106.17
20	WP3400882		Bolt, T-stat Mtg   (Replaces: 98005663)			Immediately	$ 6.47
21	W10918546		Igniter, Oven (oven Pilot)   (Replaces: 98005652)			Immediately	$ 55.40
23	98011202		Tubing (regltr To Oven Valve)		Appelez-nous	-
29	98005516		Fitting, Tube		Appelez-nous	-
30	98005506		Fitting, Female		Appelez-nous	-
31	98011226		Tubing, Inlet		Appelez-nous	-
34	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
35	W10837674		Screw   (Replaces: 98004484)				$ 6.90
36	WPW10209656		Igniter, Top   (Replaces: 98008959)			Immediately	$ 73.07
37	98005978		Lp Spud Kit (for Use With Lp)		Appelez-nous	-
37	98005982		Natural Spud Kit (for Use With Natural Gas)		Appelez-nous	-
37	WPW10278150		Clip, Igniter   (Replaces: 98007187)				$ 40.61

    View Diagram in Separate Window       Print Part List
