View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

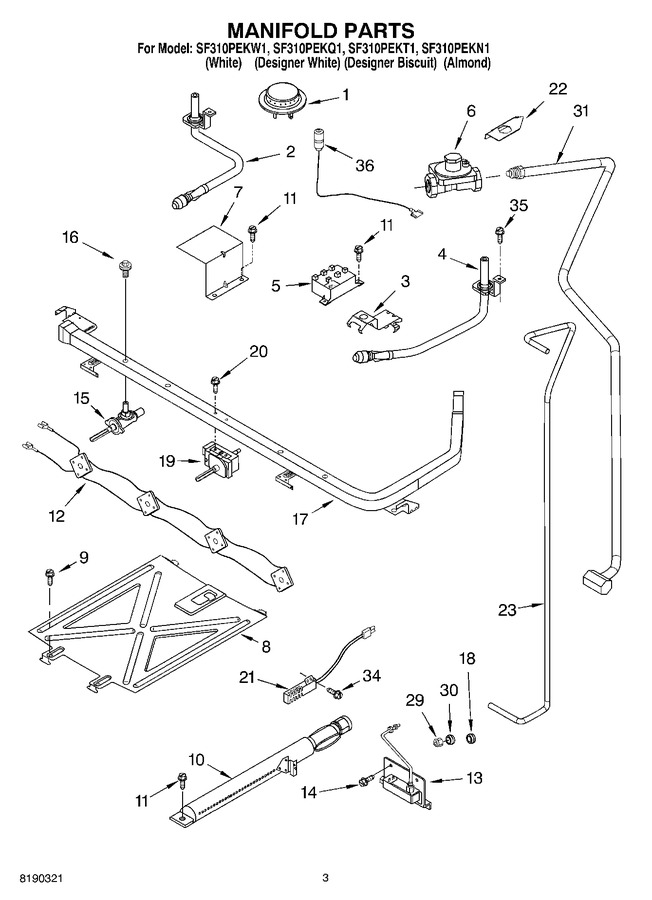

01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98004410 | Burner, Top (4) (Replaces: 98004410) |
|
$ 75.28 | |||||
| 2 | WP661243 | Venturi, Front (2) |
|
- | |||||
| 3 | 98005500 | Brkt., Venturi (4) |
|
- | |||||
| 4 | WP6610244 | Venturi, Rear (2) (Replaces: 6610244) |
|
$ 278.60 | |||||
| 5 | W11590249 | Spark Module (Replaces: 6610341) |
|
$ 21.01 | |||||
| 6 | 98005520 | Regulator |
|
- | |||||
| 7 | 98007192 | Cover, Module |
|
- | |||||
| 8 | 98003849 | Spreader, Flame |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 12.62 | ||||
| 10 | 98004314 | Burner, Oven |
|
- | |||||
| 11 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 12 | 98005561 | Harness, Switch |
|
- | |||||
| 13 | 98011275 | Valve, Oven |
|
- | |||||
| 14 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 15 | 98005574 | Valve, Burner (4) |
|
$ 117.35 | |||||
| 16 | W11428245 | Bolt, Valve Mtg (Replaces: 98005521) |
|
- | |||||
| 17 | 98010087 | Pipe, Manifold |
|
- | |||||
| 18 | 98007127 | Sleeve, 3/8`` |
|
- | |||||
| 19 | WPW10641988 | Thermostat (Replaces: 98003984) |
|
$ 106.17 | |||||
| 20 | WP3400882 | Bolt, T-stat Mtg (Replaces: 98005663) |
|
Immediately | $ 6.47 | ||||
| 21 | W10918546 | Igniter, Oven (oven Pilot) (Replaces: 98005652) |
|
Immediately | $ 55.40 | ||||
| 22 | 98007183 | Bracket |
|
- | |||||
| 23 | 98011202 | Tubing (regltr To Oven Valve) |
|
- | |||||
| 29 | 98005516 | Fitting, Tube |
|
- | |||||
| 30 | 98005506 | Fitting, Female |
|
- | |||||
| 31 | 98011226 | Tubing, Inlet |
|
- | |||||
| 34 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 35 | W10837674 | Screw (Replaces: 98004484) |
|
$ 6.90 | |||||
| 36 | 98005978 | Lp Spud Kit (for Use With Lp) |
|
- | |||||
| 36 | WPW10209657 | Ignitor, Top (yellow) (Replaces: 98014516) |
|
$ 48.56 | |||||
| 36 | WPW10278150 | Clip, Igniter (Replaces: 98007187) |
|
$ 40.61 | |||||
| 36 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 36 | 98005982 | Natural Spud Kit (for Use With Natural Gas) |
|
- | |||||
| 36 | WPW10209656 | Ignitor, Top (black) (Replaces: 98014514) |
|
Immediately | $ 73.07 | ||||
| 36 | WPW10209656 | Ignitor Top (blue) (2) (Replaces: 98014515) |
|
Immediately | $ 73.07 |
