02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

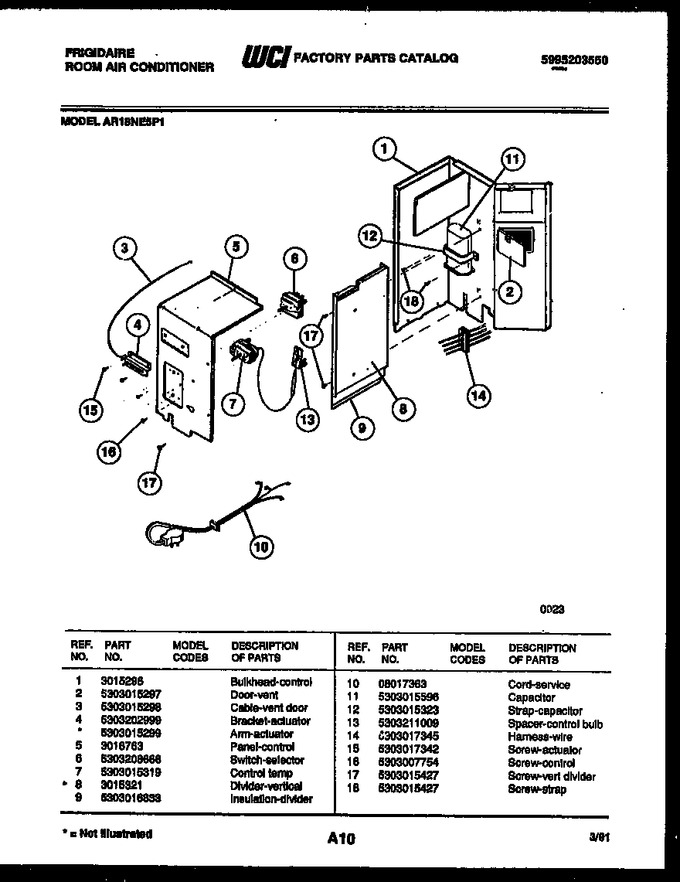

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 5 | 3016763 | Panel - Control |
|
- | |||||
| 6 | 5303208666 | Switch-selector |
|
- | |||||
| 7 | 5303015319 | Control Temp |
|
- | |||||
| 8 | 3015321 | Divider - Vertical |
|
- | |||||
| 9 | 5303016833 | Insulation-divider |
|
- | |||||
| 10 | 08017363 | Cord-service |
|
- | |||||
| 11 | 5303015596 | Capacitor |
|
- | |||||
| 12 | 5303015323 | Strap-capacitor |
|
- | |||||
| 13 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 14 | 5303017345 | Harness-wire |
|
- | |||||
| 15 | 5303017342 | Screw-actuator |
|
- | |||||
| 16 | 5303007754 | Screw-control |
|
- | |||||
| 17 | 5303015427 | Screw-vert Divider |
|
- | |||||
| 18 | 5303015427 | Screw-strap |
|
- | |||||
| 4A | 5303015299 | Arm-actuator (non-illustrated) |
|
- |
