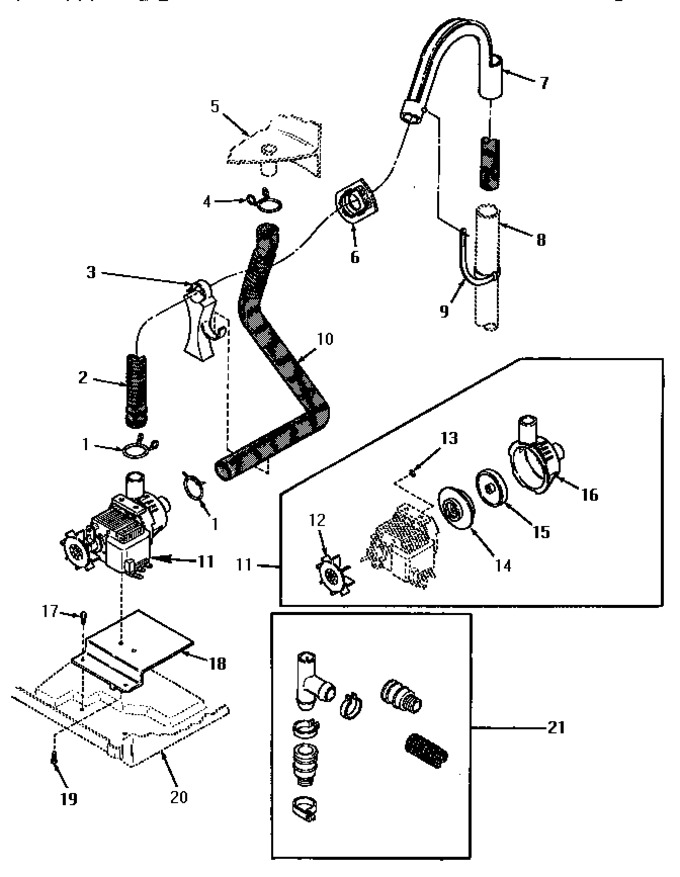

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	29172		Clamp,hose		Appelez-nous	-
2	32137		Motor		Appelez-nous	-
3	29284		Stand,hose		Appelez-nous	-
4	13582		Clamp,hose		Appelez-nous	-
5	Y00000000		See Note Outer Tub -- (see Page 8, Key 3)		Appelez-nous	-
6	32219		Relief, Strain				$ 6.95
7	29144		Drain Hose Sleeve		Appelez-nous	-
8	Y00000000		See Note Standpipe		Appelez-nous	-
9	29999		Strap, Standpipe-beaded		Appelez-nous	-
10	32026		Hose, Pump		Appelez-nous	-
11	32027		Pump Assembly		Appelez-nous	-
12	32027D		Fan		Appelez-nous	-
13	Y00000000		See Note Locking Pin, Red		Appelez-nous	-
14	32027A		Seal And Gasket		Appelez-nous	-
15	32027B		Impeller		Appelez-nous	-
16	32027C		Pump Body		Appelez-nous	-
17	WP27001200		Screw-10 16 X.44   (Replaces: Y31645)				$ 6.91
18	32216		Bracket,pump		Appelez-nous	-
19	29706		Screw,metric 1.00 X 12		Appelez-nous	-
20	Y00000000		See Note Base -- (see Page 12, Key 20)		Appelez-nous	-
21	76660		Siphon Break Kit   (Replaces: 297P3)			Immediately	$ 119.93
