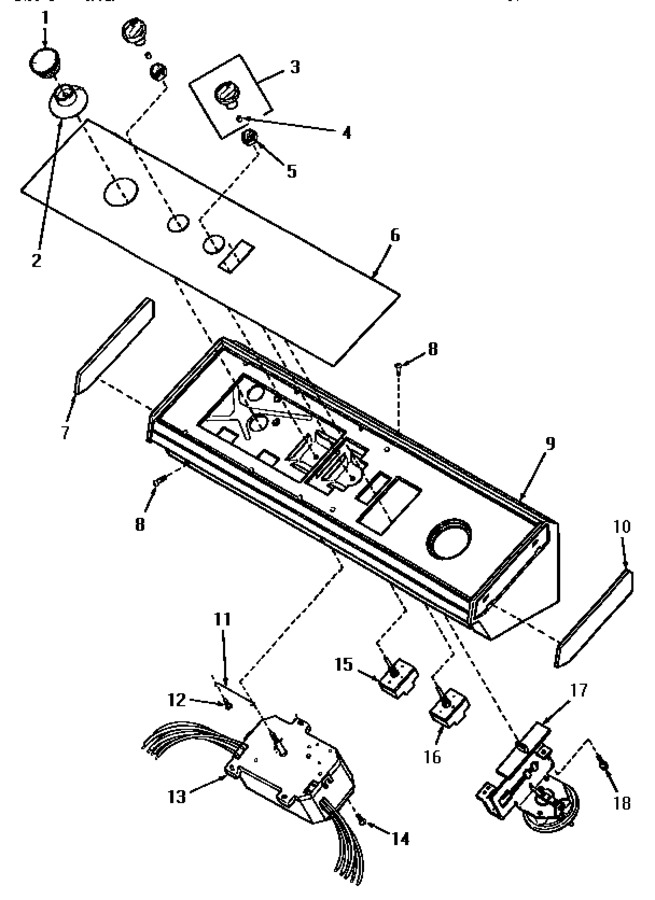

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	32253		Knob		Appelez-nous	-
2	32254		Indicator,dial		Appelez-nous	-
3	32310		Assy,knob-rotary-brown		Appelez-nous	-
4	10519		Retainer		Appelez-nous	-
5	57584		Nut		Appelez-nous	-
6	32448		Panel,graphic-va6013		Appelez-nous	-
7	213995		Insert,l.h.   (Replaces: 32217)			Immediately	$ 363.34
8	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
9	32445		No Longer Available		Appelez-nous	-
10	32218		Insert,r.h.		Appelez-nous	-
11	14089		Clip,grounding		Appelez-nous	-
12	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
13	32041		Timer		Appelez-nous	-
14	21333		Screw		Appelez-nous	-
15	32256		No Longer Available		Appelez-nous	-
16	32139		Switch,temperature		Appelez-nous	-
17	32069		Switch,pressure		Appelez-nous	-
18	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
	NOTE:		Note 3: Invidual Wires Not Serviced Seperatley. Order Complete Assemblies Or Order By The Foot.		Appelez-nous	-
