| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 2 |
NA |
|
Panel,graphic (Replaces: 60347) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
31752 |
|
Screw,no.8abx3/4 Pozidri |
|
Appelez-nous
|
- |
|
|
|
| 4 |
213995 |
 |
Insert,l.h. (Replaces: 32217) |
|
|
Immediately |
$ 363.34 |
|
|
| 5 |
59955 |
|
Assy,hood & Mounting P |
|
Appelez-nous
|
- |
|
|
|
| 6 |
59446 |
|
Signal,non-adjustable |
|
Appelez-nous
|
- |
|
|
|
| 7 |
WP90767 |
 |
Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
|
Immediately |
$ 7.04 |
|
|
| 8 |
57584 |
|
Nut |
|
Appelez-nous
|
- |
|
|
|
| 9 |
59704 |
|
Bracket,switch Mount |
|
Appelez-nous
|
- |
|
|
|
| 10 |
31260 |
|
Screw, No.8 X 3/8 Ind H |
|
|
|
$ 2.68 |
|
|
| 11 |
Y61511 |
|
Switch,fabric Selector |
|
Appelez-nous
|
- |
|
|
|
| 11 |
58813 |
|
Switch |
|
Appelez-nous
|
- |
|
|
|
| 12 |
59450 |
|
Switch,rotate-to-start |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP90767 |
|
Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
|
Immediately |
$ 7.04 |
|
|
| 14 |
59497 |
|
Timer,4 Cycle |
|
Appelez-nous
|
- |
|
|
|
| 15 |
32218 |
|
Insert,r.h. |
|
Appelez-nous
|
- |
|
|
|
| 16 |
WP90767 |
|
Screw (Replaces: Y59616) |
|
|
Immediately |
$ 7.04 |
|
|
| 17 |
60284 |
|
Assy,timer Knob & Skir |
|
Appelez-nous
|
- |
|
|
|
| 18 |
10519 |
|
Retainer |
|
Appelez-nous
|
- |
|
|
|
| 19 |
32310 |
|
Assy,knob-rotary-brown |
|
Appelez-nous
|
- |
|
|
|
|
NOTE: |
|
We Use Different Timer Vendors. Although The Timers Differ In Appearance, Theyare Completely Interchangeable When Identified By The Same Part Number. |
|
Appelez-nous
|
- |
|
|
|

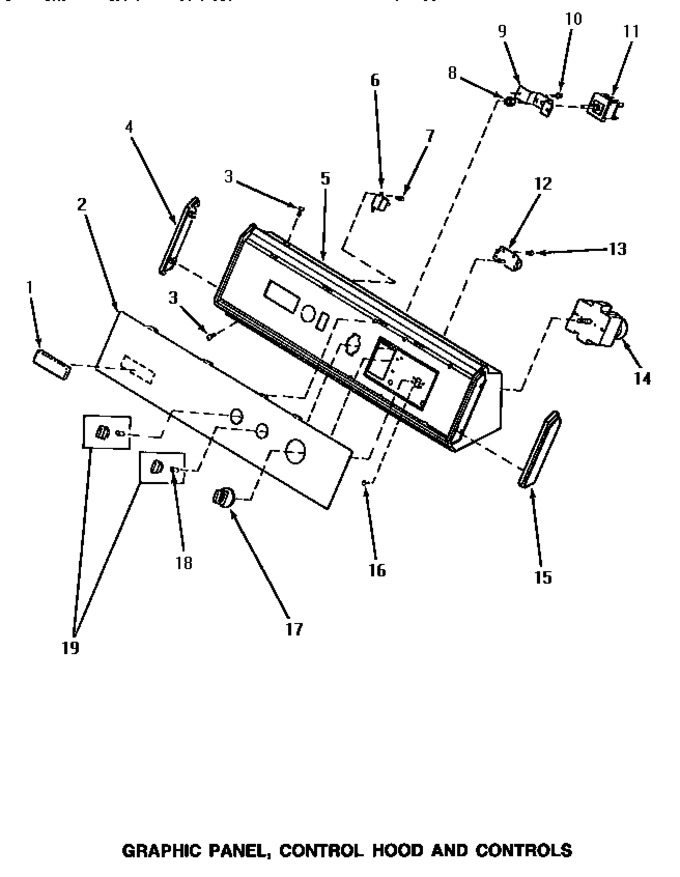

View Diagram in Separate Window
Print Part List
