SELECT A DIAGRAM

02 - Oven


03 - Manifold


04 - Oven Door And Broiler


05 - Backguard


06 - Cooktop

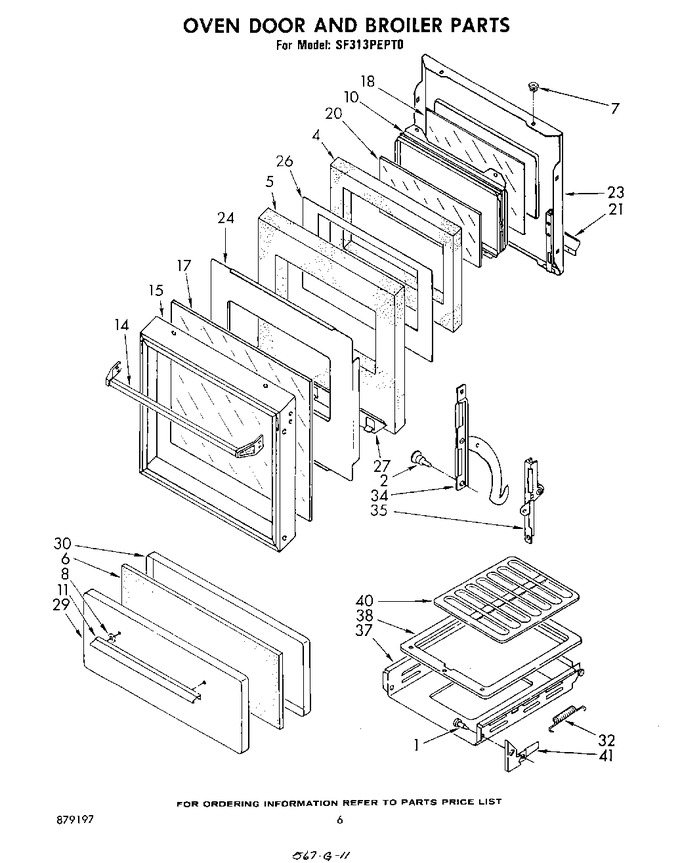

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878079		Bolt, Shoulder 10-24 X 7/16 (2)		Appelez-nous	-
2	878080		Bolt, Shoulder 10-24 X 7/16 (2)		Appelez-nous	-
4	878798		Insulation, Oven Door		Appelez-nous	-
5	WPW10208653		Insulation, Oven Door   (Replaces: 878089)			Immediately	$ 49.92
6	878090		Insulation, Broiler Door		Appelez-nous	-
7	878095		Nut, Expansion (6)		Appelez-nous	-
8	878097		Spacer, Door Handle (4)		Appelez-nous	-
10	878106		Frame, Window		Appelez-nous	-
11	878728		Handle, Broiler Door		Appelez-nous	-
14	878133		Handle, Oven Door		Appelez-nous	-
15	878138		Frame, Door		Appelez-nous	-
17	878139		Glass, Oven Door Outside		Appelez-nous	-
18	878002		Glass, Oven Door Inside		Appelez-nous	-
20	878141		Glass, Oven Door Center		Appelez-nous	-
21	878472		Strip, Door Seal		Appelez-nous	-
23	878827		Lining, Oven Door		Appelez-nous	-
24	878144		Baffle, Door		Appelez-nous	-
26	878145		Shield, Heat		Appelez-nous	-
27	878146		Retainer, Insulation		Appelez-nous	-
29	878475		Panel, Broiler Door (black)		Appelez-nous	-
30	878149		Lining, Broiler Door		Appelez-nous	-
32	878165		Spring, Broiler Door (2)		Appelez-nous	-
34	878167		Hinge, Oven Door (2)		Appelez-nous	-
35	878168		Support, Oven Door (left Side)		Appelez-nous	-
35	878169		Support, Oven Door (right Side)		Appelez-nous	-
37	878172		Drawer, Broiler		Appelez-nous	-
38	878173		Pan, Broiler		Appelez-nous	-
40	878174		Tray, Broiler Pan		Appelez-nous	-
41	878184		Hinge, Broiler Door (right Side)		Appelez-nous	-
41	878183		Hinge, Broiler Door (left Side)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
