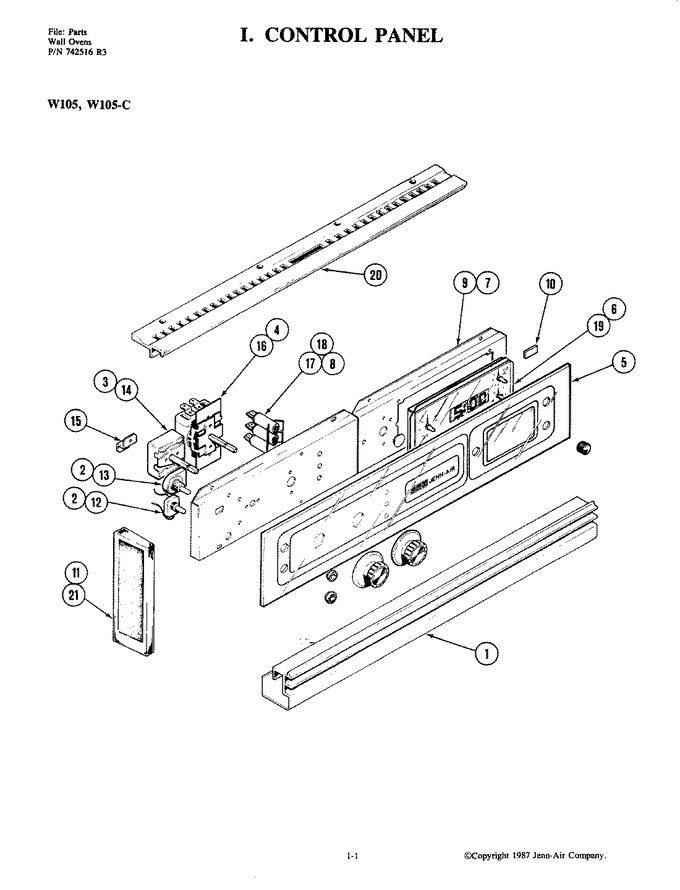

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701608		Extrusion, Bottom	1-10	Appelez-nous	-
2	701610		Bezel, Switch	1-10	Appelez-nous	-
3	12200031		Knob, Selector-lower   (Replaces: Y703501)	10			$ 60.55
3	00702897		Knob, Selector   (Replaces: 702897)	1-4			$ 722.64
3	12200031		Knob, Selector-lower   (Replaces: 703058)	5			$ 60.55
4	WPY703499		Knob, Thermostat   (Replaces: 703057)	5-9			$ 43.52
4	WPY703499		Knob, Thermostat   (Replaces: Y703499)	10			$ 43.52
4	701612		Knob, Thermostat	1-4	Appelez-nous	-
5	702931		Panel, Control	1-10	Appelez-nous	-
6	700564		Knob, Clock	1-4	Appelez-nous	-
6	Y702547		Knob, Clock	5-10	Appelez-nous	-
7	DE81-06143A		Panel (lt)   (Replaces: 701615)	1-10			$ 393.48
8	Y700630		Lens, Indicator Lights	1-10			$ 4.18
9	DE81-03509A		Panel (rt)   (Replaces: 701617)	1-10			$ 221.06
10	DE81-03511A		Pad, Spacer   (Replaces: 701618)	1-10		Immediately	$ 138.07
11	701619		Cap, End (rt)	1-10	Appelez-nous	-
12	Y701620		Switch, Momentary	1-10	Appelez-nous	-
13	DE81-08481A		Switch, Push   (Replaces: 701621)	1-10			$ 606.80
14	Y702885		Switch, Selector	1-4	Appelez-nous	-
14	Y703149		Switch, Selector	5-10	Appelez-nous	-
15	Y707664		Washer	1-10	Appelez-nous	-
15	701609		Angle, Attachment	1-10	Appelez-nous	-
16	Y701625		Thermostat	1-4	Appelez-nous	-
16	Y703148		Thermostat	5-10	Appelez-nous	-
17	Y700557		Light, Indicator	1-10	Appelez-nous	-
18	715396		Pilot Light & Lens	1-10	Appelez-nous	-
18	WP12990527		Screw   (Replaces: Y708955)	1-10		Immediately	$ 7.15
19	701637		Clock	1-4	Appelez-nous	-
19	703420		Clock	5-10	Appelez-nous	-
20	701634		Extrusion, Top	1-10	Appelez-nous	-
21	701635		Cap, End (lt)	1-10	Appelez-nous	-
21	Y701623		Block, Terminal	1-10	Appelez-nous	-
21	702746		Tie, Mount Cable	1-10	Appelez-nous	-
21	702886		Harness, Wire	1-10	Appelez-nous	-
