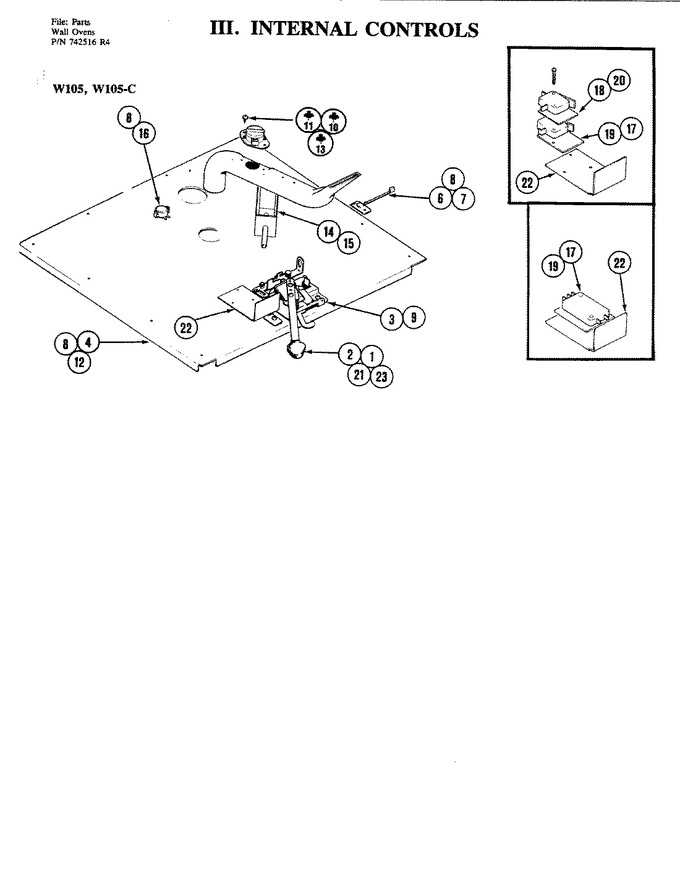

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701670		Knob, Lever	1-11	Appelez-nous	-
2	701671		Spring, Knob	1-11	Appelez-nous	-
3	Y703357		Latch Assy.	7-11	Appelez-nous	-
3	701673		Latch	1-6	Appelez-nous	-
4	704155		Panel-top	11	Appelez-nous	-
4	701674		Panel, Inner	1-10	Appelez-nous	-
5	701677		Screw	1-11	Appelez-nous	-
6	WPW10339879		Tie, Cable   (Replaces: 701678)	1-11			$ 7.11
7	WP90767		Screw   (Replaces: Y700502)	1-11		Immediately	$ 7.04
7	702746		Tie, Mount Cable	1-11	Appelez-nous	-
8	WP12990527		Screw   (Replaces: Y708955)	1-11		Immediately	$ 7.15
9	701675		Ring, Retaining	1-11	Appelez-nous	-
10	71002058		Screw   (Replaces: Y702124)	1-11			$ 5.82
10	702728		Harness, Wire	1-11	Appelez-nous	-
10	Y702107		Limit, Oven	1-11	Appelez-nous	-
11	WP355214		Screw   (Replaces: Y700725)	1-11		Immediately	$ 7.26
12	701683		Bracket, Hat (rear)	1-11	Appelez-nous	-
13	WP59002061		Screw   (Replaces: Y707172)	1-11			$ 6.98
13	701684		Tube, Vent	1-11	Appelez-nous	-
13	702795		Tube, Vent	1-11	Appelez-nous	-
14	701688		Cable, Solenoid	1-8	Appelez-nous	-
14	Y702526		Solenoid	9-11	Appelez-nous	-
14	701685		Solenoid	1-8	Appelez-nous	-
15	Y701686		Pin, Cotter	1-11	Appelez-nous	-
16	WP74004005		Screw   (Replaces: Y700929)	1-11			$ 6.95
16	701687		Thermostat	1-11	Appelez-nous	-
17	701689		Switch, Door Latch	1-6	Appelez-nous	-
17	702805		Switch, Door	7-11	Appelez-nous	-
18	702806		Switch, Door	7-11	Appelez-nous	-
19	712086		Insulator, Switch	1-6	Appelez-nous	-
19	Y702350		Insulator	7-11	Appelez-nous	-
20	702807		Screw	7-11	Appelez-nous	-
20	703264		Insulator	7-11	Appelez-nous	-
21	Y701690		Lever, Latch	1-11	Appelez-nous	-
22	701706		Shield, Switch	1-11	Appelez-nous	-
23	707407		Screw	1-11			$ 6.42
