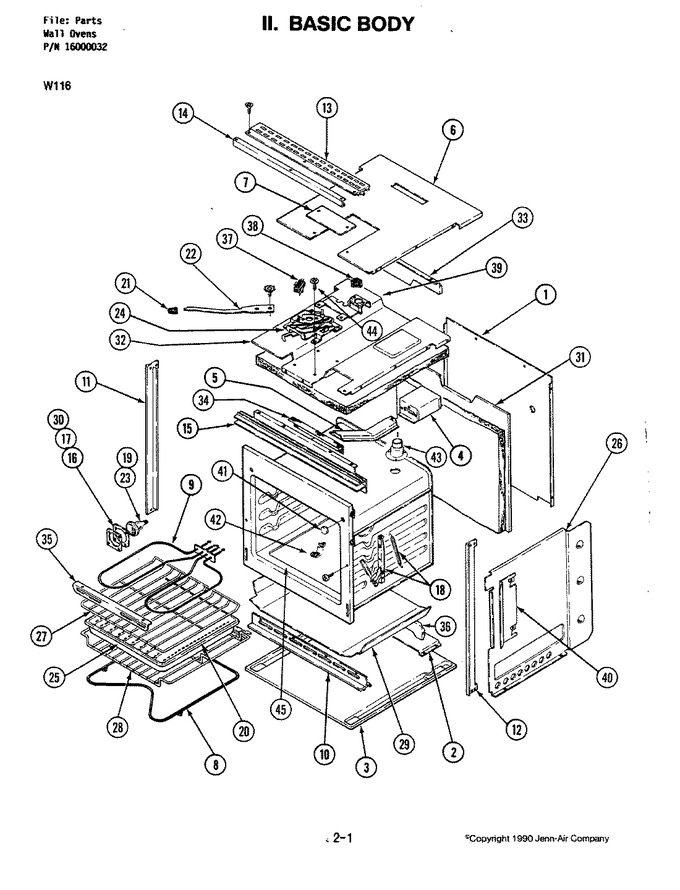

01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F121-51 | Back, Main | 01 |
|
- | ||||
| 2 | 3601F005-80 | Baffle, Base | 01 |
|
- | ||||
| 3 | 4003F011-80 | Base, Wall Oven | 01 |
|
- | ||||
| 4 | 4006W046-45 | Box, Vent | 01 |
|
- | ||||
| 5 | 3818W002-15 | Channel, Vent Assembly | 01 |
|
- | ||||
| 6 | 4005F202-51 | Cover, Box | 01 |
|
- | ||||
| 7 | 4005F160-45 | Cover, Lock | 01 |
|
- | ||||
| 8 | WPY04000066 | Element, Bake (Replaces: 7406P075-60) | 10 |
|
Immediately | $ 70.53 | |||
| 8 | WPY04000066 | Element Bake (Replaces: 7406P013-60) | 01 |
|
Immediately | $ 70.53 | |||
| 9 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 01 |
|
$ 160.58 | ||||
| 9 | WPY04000048 | Element, Broil (Replaces: 7406P076-60) | 10 |
|
$ 160.58 | ||||
| 10 | 7706P153-60 | Extrusion, Bottom (blk) | 01 |
|
- | ||||
| 11 | 7750P031-60 | Extrusion, Side (lt-blk) | 03 |
|
- | ||||
| 11 | 7750P016-60 | Extrusion, Side-l | 01 |
|
- | ||||
| 12 | 7750P017-60 | Extrusion, Side-r | 01 |
|
- | ||||
| 12 | 7750P032-60 | Extrusion, Side (rt-blk) | 03 |
|
- | ||||
| 13 | 7706P199-60 | Extrusion, Top (blk) | 01 |
|
- | ||||
| 14 | 7706P185-60 | Extrusion, Top Front | 01 |
|
- | ||||
| 15 | 7756P023-60 | Extrusion, Vent | 01 |
|
- | ||||
| 15 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 15 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 01 |
|
$ 9.89 | ||||
| 15 | 7103P040-60 | Nut, Snap (wht) | 01 |
|
- | ||||
| 15 | 7756P070-60 | Extrusion, Vent (blk) | 09 |
|
- | ||||
| 15 | 7103P051-60 | Nut, Snap | 01 |
|
- | ||||
| 16 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 17 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 18 | 7106A019-60 | Hinge, Upper | 01 |
|
- | ||||
| 19 | 4001W012-51 | Housing Lamp | 01 |
|
- | ||||
| 20 | 4396923 | Insert, Broil Pan (Replaces: 3413F013-19) | 08 |
|
Immediately | $ 52.04 | |||
| 20 | 4396923 | Insert, Broiler Pan (Replaces: 3413F010-15) | 01 |
|
Immediately | $ 52.04 | |||
| 21 | 790277 | Clip, Latch Handle | 01 |
|
- | ||||
| 21 | 7701P068-60 | Handle, Latch (blk) | 01 |
|
- | ||||
| 22 | 8009P011-60 | Lever, Latch | 01 |
|
- | ||||
| 23 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 23 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 24 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 01 |
|
$ 306.52 | ||||
| 25 | 3401F014-19 | Pan, Broil | 08 |
|
- | ||||
| 25 | 3401F014-15 | Pan, Broiler | 01 |
|
- | ||||
| 26 | 2618F053-51 | Panel, Side (rt) | 01 |
|
- | ||||
| 26 | 2618F054-51 | Panel, Side (lt) | 01 |
|
- | ||||
| 27 | 7801P005-60 | Rack | 01 |
|
- | ||||
| 28 | 7801P007-60 | Rack, Offset | 01 |
|
- | ||||
| 29 | 3804W034-51 | Retainer, Bottom | 01 |
|
- | ||||
| 30 | 3804F011-45 | Retainer | 01 |
|
- | ||||
| 31 | 3804F096-51 | Retainer, Rear | 01 |
|
- | ||||
| 32 | 3804F053-51 | Retainer,top | 01 |
|
- | ||||
| 33 | 3604F101-80 | Shield, Air | 01 |
|
- | ||||
| 34 | 3604F048-80 | Shield, Terminal | 01 |
|
- | ||||
| 35 | 3807F176-15 | Support, Broil Element | 01 |
|
- | ||||
| 36 | 3807F137-80 | Support | 01 |
|
- | ||||
| 37 | 7403P007-60 | Switch, Door Lock | 01 |
|
- | ||||
| 37 | 5195A018-60 | Harness Door Lock | 01 |
|
- | ||||
| 38 | 7403P063-60 | Switch, High Limit | 01 |
|
$ 156.41 | ||||
| 39 | 3801F128-45 | Bracket, Hi Limit | 01 |
|
- | ||||
| 40 | 8003P002-60 | Bumper Door (round) | 01 |
|
- | ||||
| 41 | 8003P002-60 | Bumper Door (round) | 01 |
|
- | ||||
| 41 | 8003P009-60 | Bumper, Door (square) | 05 |
|
- | ||||
| 42 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 43 | 7201P016-60 | Gasket | 01 |
|
- | ||||
| 43 | 7505P018-60 | Catalyst Burner | 01 |
|
- | ||||
| 44 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 45 | 2205F003-19 | Bottom, Oven | 08 |
|
- | ||||
| 45 | 2205F003-15 | Bottom, Oven (upper) | 01 |
|
- | ||||
| 45 | 7401P003-60 | Block, Terminal----na | 01 |
|
- |
