01 - Blower Motor (convection)
02 - Blower Motor (cooling Fan)
03 - Body
04 - Control Panel
05 - Door

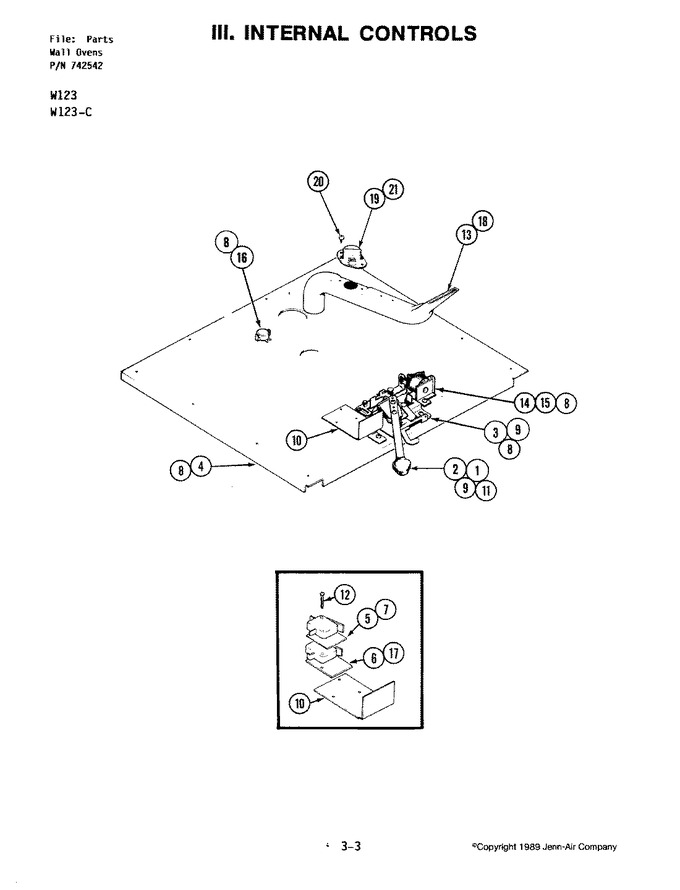

06 - Internal Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701670 | Knob, Lever | 1 |
|
- | ||||
| 2 | 701671 | Spring, Knob | 1 |
|
- | ||||
| 3 | Y703357 | Latch Assy. | 1 |
|
- | ||||
| 4 | 704684 | Panel, Top | 1 |
|
- | ||||
| 5 | 702806 | Switch, Door | 1 |
|
- | ||||
| 6 | Y702350 | Insulator | 1 |
|
- | ||||
| 7 | 703264 | Insulator | 1 |
|
- | ||||
| 8 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 9 | Y704240 | Lever, Latch (blk) | 1 |
|
- | ||||
| 10 | 701706 | Shield, Switch | 1 |
|
- | ||||
| 11 | 707407 | Screw | 1 |
|
$ 6.42 | ||||
| 12 | 702807 | Screw | 1 |
|
- | ||||
| 13 | 702795 | Tube, Vent | 1 |
|
- | ||||
| 14 | Y702526 | Solenoid | 1 |
|
- | ||||
| 15 | Y701686 | Pin, Cotter | 1 |
|
- | ||||
| 16 | 701687 | Thermostat | 1 |
|
- | ||||
| 17 | 702805 | Switch, Door | 1 |
|
- | ||||
| 18 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 19 | Y702107 | Limit, Oven | 1 |
|
- | ||||
| 20 | 700722 | Buss Wire Brown | 1 |
|
- | ||||
| 21 | 702728 | Harness, Wire | 1 |
|
- |
