01 - Blower Motor (convection)


02 - Blower Motor (cooling)

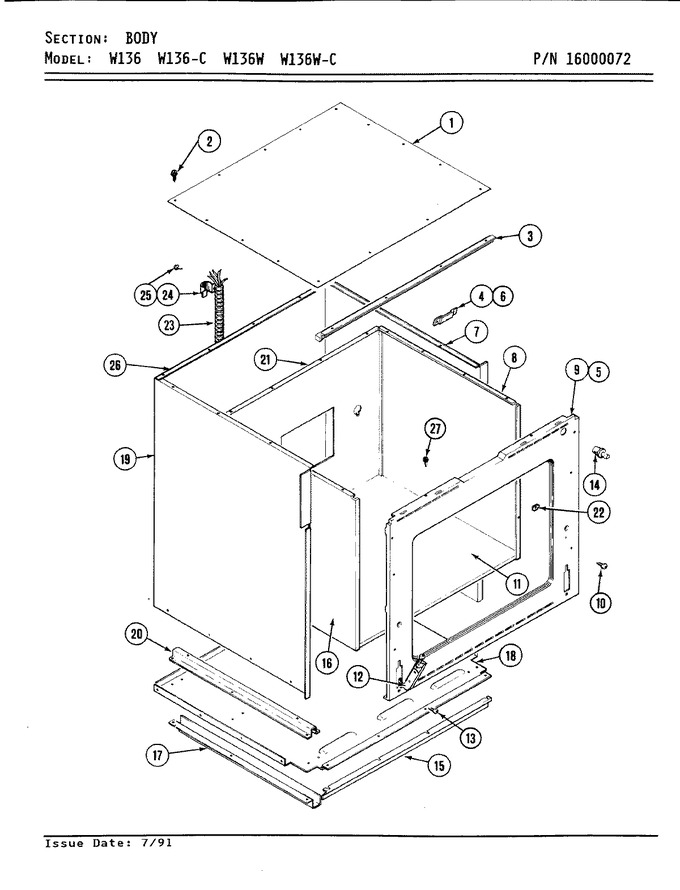

03 - Body


04 - Control Panel


05 - Door


06 - Internal Controls


07 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701681		Top (outer)	1	Appelez-nous	-
2	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
3	703095		Support, Top	1	Appelez-nous	-
4	701680		Bracket, Vent Tube	1	Appelez-nous	-
5	702594		Spacer	1			$ 641.16
6	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
7	701672		Panel, Outer (rt)	1	Appelez-nous	-
8	701676		Panel, Side (rt)	1	Appelez-nous	-
9	703609		Closure, Front	1	Appelez-nous	-
10	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
11	DE81-07471A		Panel, Bottom   (Replaces: 701669)	1			$ 320.80
12	Y703419		Hinge	1	Appelez-nous	-
13	WP3196183		Screw   (Replaces: Y701664)	1		Immediately	$ 6.98
14	701666		Switch, Door	1	Appelez-nous	-
15	701848		Trim, Oven (lower)	1	Appelez-nous	-
16	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)	1			$ 779.04
17	700596		Rail, Bottom	1	Appelez-nous	-
18	701668		Panel, Bottom (outer)	1	Appelez-nous	-
19	701695		Panel, Outer (lt)	1	Appelez-nous	-
20	DE81-06547A		Support, Bottom   (Replaces: 701667)	1			$ 163.64
21	704808		Panel, Rear	1	Appelez-nous	-
22	Y700556		Clip, J	1	Appelez-nous	-
23	703736		Cable Assy	1	Appelez-nous	-
24	DE81-08030A		Clamp, Conduit   (Replaces: 701692)	1			$ 131.01
25	WP7101P126-60		Screw   (Replaces: Y708310)	1		Immediately	$ 6.85
26	701701		Angle, Oven Support	1	Appelez-nous	-
26	701691		Panel, Rear (outer)	1	Appelez-nous	-
27	WPW10068250		Screw   (Replaces: Y700582)	1			$ 3.66
27	702007		Breaker (15 Amp)	1	Appelez-nous	-
27	702008		Breaker (30 Amp)	1	Appelez-nous	-
27	704165		Box, Breaker	1	Appelez-nous	-
