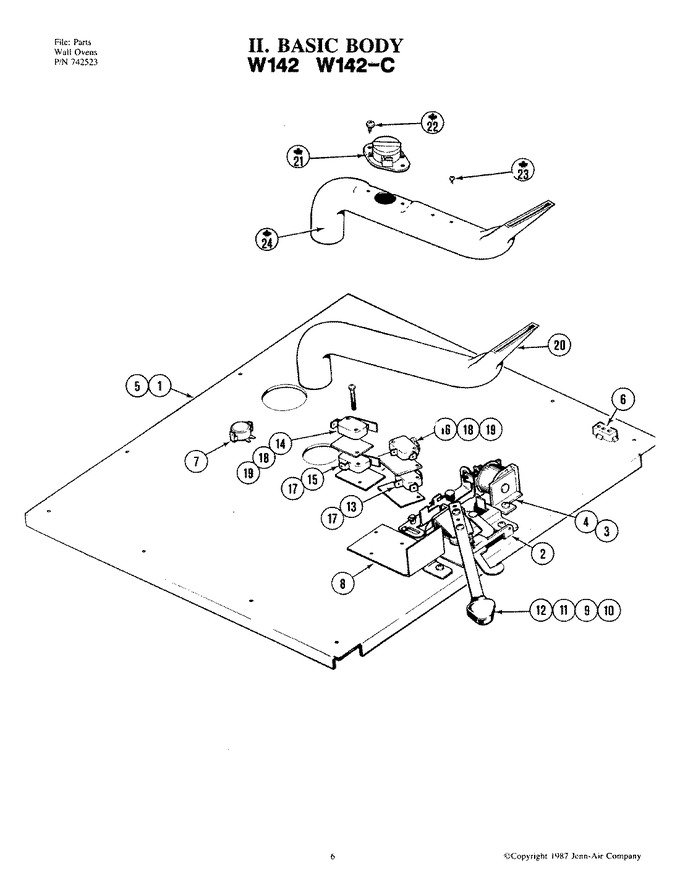

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704155		Panel-top	2	Appelez-nous	-
1	703768		Panel, Top	1	Appelez-nous	-
2	Y703357		Latch Assy.	1-2	Appelez-nous	-
3	Y701686		Pin, Cotter	1-2	Appelez-nous	-
4	Y702526		Solenoid	1-2	Appelez-nous	-
4	703767		Wire, Gray	1-2	Appelez-nous	-
5	WP12990527		Screw   (Replaces: Y708955)	1-2		Immediately	$ 7.15
6	703517		Connector, Harness	1-2	Appelez-nous	-
7	701687		Thermostat	1-2	Appelez-nous	-
8	701706		Shield, Switch	1-2	Appelez-nous	-
9	Y701690		Lever, Latch	1-2	Appelez-nous	-
10	707407		Screw	1-2			$ 6.42
11	701671		Spring, Knob	1-2	Appelez-nous	-
12	701670		Knob, Lever	1-2	Appelez-nous	-
13	Y702360		Switch, Solenoid	1-2	Appelez-nous	-
14	702806		Switch, Door	1-2	Appelez-nous	-
15	702805		Switch, Door	1-2	Appelez-nous	-
16	Y703732		Switch, Latch	1-2	Appelez-nous	-
17	Y702350		Insulator	1-2	Appelez-nous	-
18	704364		Insulator	1-2	Appelez-nous	-
19	702807		Screw	1-2	Appelez-nous	-
20	703767		Wire, Gray	1-2	Appelez-nous	-
20	WP74004005		Screw   (Replaces: 707365)	1-2			$ 6.95
20	701684		Tube, Vent	1-2	Appelez-nous	-
20	701817		Screw	1-2	Appelez-nous	-
21	71002058		Screw   (Replaces: Y702124)	1			$ 5.82
21	Y702711		Terminal	1	Appelez-nous	-
21	Y702107		Limit, Oven	1	Appelez-nous	-
21	703386		Wire, Yellow	1	Appelez-nous	-
22	WP355214		Screw   (Replaces: Y700725)	1		Immediately	$ 7.26
23	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
23	WP59002061		Screw   (Replaces: Y707172)	1			$ 6.98
24	702795		Tube, Vent	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
