View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Body

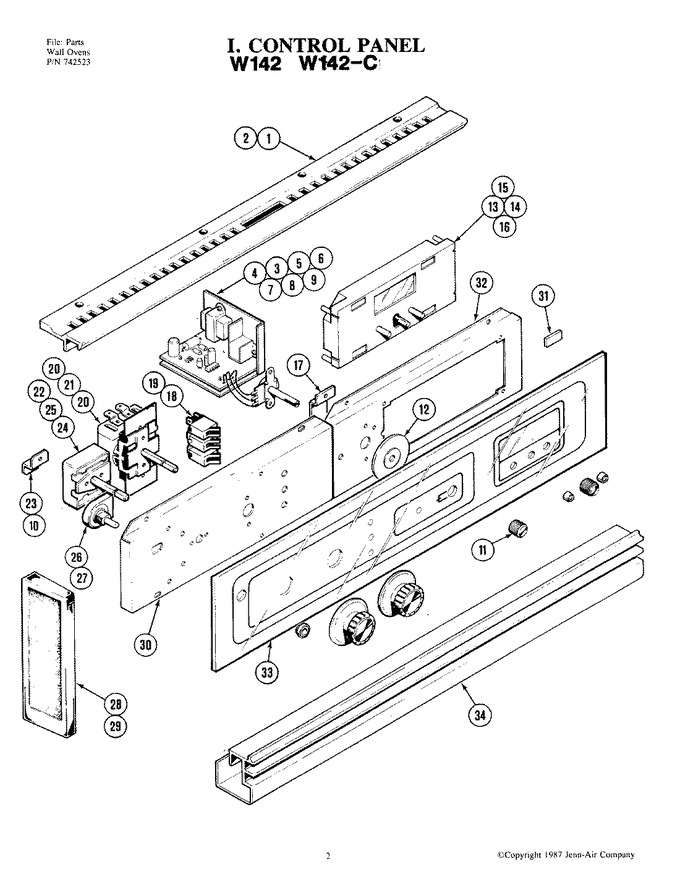

03 - Control Panel
04 - Door
05 - Fan (convection)
06 - Fan (cooling)
07 - Oven Liner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701634 | Extrusion, Top | 1 |
|
- | ||||
| 2 | 702066 | Screw | 1 |
|
- | ||||
| 3 | DE81-04410A | Module, Temp Control (Replaces: 703091) | 1 |
|
$ 416.74 | ||||
| 4 | 701844 | Shield, C.b. | 1 |
|
- | ||||
| 5 | Y700584 | Screw | 1 |
|
- | ||||
| 6 | 700893 | Support, P.c. Board | 1 |
|
- | ||||
| 7 | 701629 | Transformer | 1 |
|
- | ||||
| 8 | 703765 | Relay | 1 |
|
- | ||||
| 9 | 703729 | Harness, P.c. Board | 1 |
|
- | ||||
| 9 | 701630 | Bracket, Mount | 1 |
|
- | ||||
| 9 | 703730 | Harness, Probe | 1 |
|
- | ||||
| 10 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 11 | Y702547 | Knob, Clock | 1 |
|
- | ||||
| 12 | DE81-03510A | Dial, Temperature (Replaces: 701616) | 1 |
|
$ 439.30 | ||||
| 13 | Y703708 | Clock | 1 |
|
- | ||||
| 14 | 703679 | Palnut | 1 |
|
- | ||||
| 15 | 703714 | Knob, Clock (sm) | 1 |
|
- | ||||
| 16 | 703810 | Harness, Wire | 1 |
|
- | ||||
| 16 | 703737 | Harness, Control | 1 |
|
- | ||||
| 16 | WP7711P492-60 | Knob, Clock (Replaces: 7711P492-60) | 1 |
|
$ 12.13 | ||||
| 17 | 701754 | Bracket, Hat | 1 |
|
- | ||||
| 18 | Y702394 | Light, Indicator 240v | 1 |
|
- | ||||
| 19 | Y702393 | Light, Indicator-120v | 1 |
|
- | ||||
| 19 | 701627 | Led | 1 |
|
- | ||||
| 20 | DE81-04412A | Wire, Pink (Replaces: 703090) | 1 |
|
$ 327.97 | ||||
| 20 | 703290 | Wire, Resistor | 1 |
|
- | ||||
| 20 | DE81-09159A | Wire, Wire (Replaces: 703370) | 1 |
|
$ 313.88 | ||||
| 20 | 703080 | Thermostat-upper | 1 |
|
- | ||||
| 20 | 703089 | Wire, Tan | 1 |
|
- | ||||
| 21 | WPY703499 | Knob, Thermostat (Replaces: Y703499) | 1 |
|
$ 43.52 | ||||
| 22 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 23 | 701609 | Angle, Attachment | 1 |
|
- | ||||
| 24 | 703738 | Harness, Wire | 1 |
|
- | ||||
| 24 | 703077 | Switch, Selector Upper | 1 |
|
- | ||||
| 25 | DE81-06568A | Knob, Selector-upper (Replaces: 703502) | 1 |
|
$ 163.11 | ||||
| 26 | DE81-08481A | Switch, Push (Replaces: 701621) | 1 |
|
$ 606.80 | ||||
| 27 | 701610 | Bezel, Switch | 1 |
|
- | ||||
| 28 | 701635 | Cap, End (lt) | 1 |
|
- | ||||
| 29 | 701619 | Cap, End (rt) | 1 |
|
- | ||||
| 30 | 702746 | Tie, Mount Cable | 1 |
|
- | ||||
| 30 | 703722 | Panel, Control (lt) | 1 |
|
- | ||||
| 30 | Y700630 | Lens, Indicator Lights | 1 |
|
$ 4.18 | ||||
| 31 | DE81-03511A | Pad, Spacer (Replaces: 701618) | 1 |
|
Immediately | $ 138.07 | |||
| 32 | 703676 | Bracket, Timer | 1 |
|
- | ||||
| 32 | 703675 | Panel (rt) | 1 |
|
- | ||||
| 33 | 703678 | Glass | 1 |
|
- | ||||
| 34 | 701608 | Extrusion, Bottom | 1 |
|
- |
