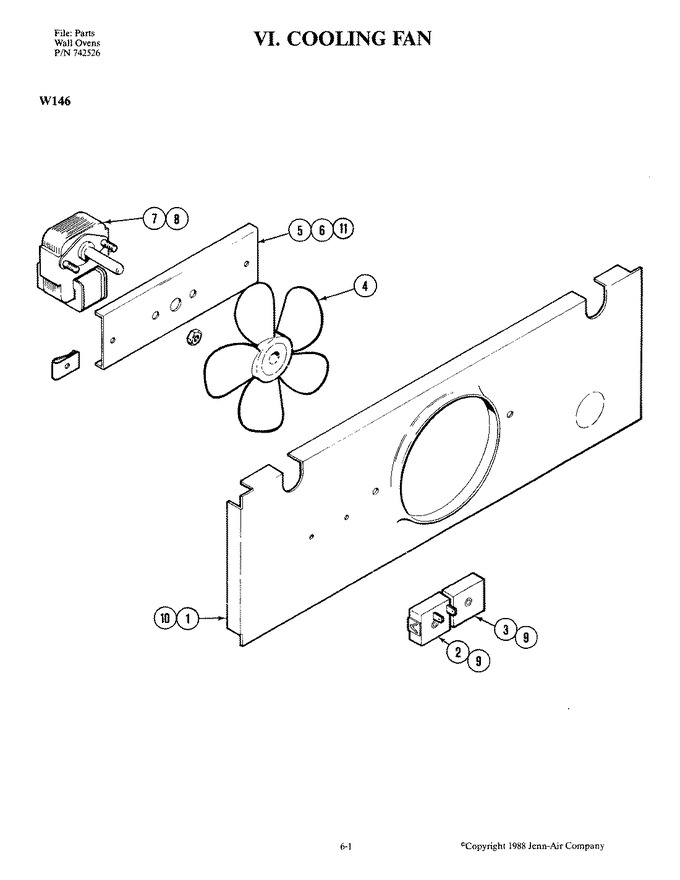

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704336 | Plate, Motor | 3 |
|
- | ||||
| 1 | 703096 | Plate, Motor | 1-2 |
|
- | ||||
| 2 | 701699 | Switch, Bake Cycle | 1-2 |
|
- | ||||
| 2 | 704354 | Switch, Bake Cycle | 3 |
|
- | ||||
| 3 | 701698 | Switch, Broil Cycle | 1-2 |
|
- | ||||
| 3 | 704355 | Switch, Broil Cycle | 3 |
|
- | ||||
| 4 | 701718 | Blade, Fan | 1 |
|
- | ||||
| 5 | Y703570 | Mount, Motor | 1 |
|
- | ||||
| 6 | Y700556 | Clip, J | 1 |
|
- | ||||
| 7 | Y701721 | Motor, Fan | 1 |
|
- | ||||
| 8 | M0282005 | Nut, Hex (Replaces: 701719) | 1 |
|
$ 7.07 | ||||
| 9 | 704335 | Screw | 3 |
|
- | ||||
| 9 | WP12990527 | Screw (Replaces: Y708955) | 1-2 |
|
Immediately | $ 7.15 | |||
| 10 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 11 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 |
