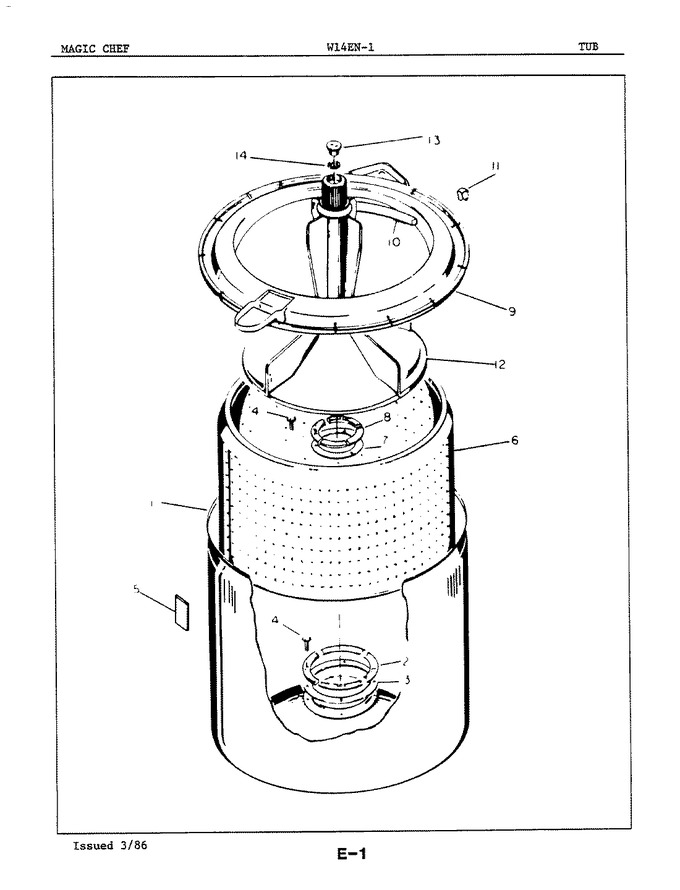

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33-9392 | Tub Assembly |
|
- | |||||
| 2 | 33-8800 | Plate |
|
- | |||||
| 3 | 33-6905 | Gasket |
|
- | |||||
| 4 | 25-7783 | Screw |
|
- | |||||
| 5 | 33-3232 | Pad |
|
- | |||||
| 6 | 35-0003 | Basket Asm | A |
|
- | ||||
| 6 | 33-9567 | Basket Asm |
|
- | |||||
| 7 | 33-8959 | Gasket | A |
|
- | ||||
| 7 | 33-6902 | Gasket |
|
- | |||||
| 8 | 33-8799 | Reinf Plate |
|
- | |||||
| 9 | 33-6046 | Tub Top |
|
- | |||||
| 10 | 33-3055 | Gasket |
|
- | |||||
| 11 | 25-7748 | Clip |
|
- | |||||
| 12 | 35-0093 | Agitator |
|
- | |||||
| 13 | 33-6241 | Cap |
|
- | |||||
| 14 | 25-7330 | Rubber Washer |
|
- |
