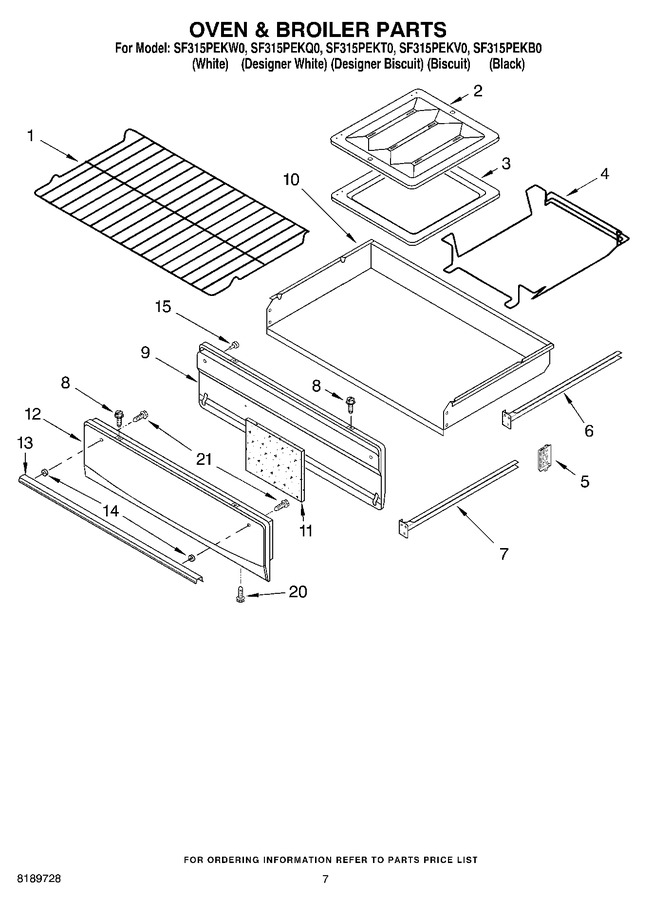

05 - Oven And Broiler
06 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98011454 | Rack, Oven (2) |
|
- | |||||
| 2 | WP98003480 | Grill, Broiler (Replaces: 98003480) |
|
$ 89.69 | |||||
| 3 | WP98016005 | Pan, Broiler (Replaces: 98003479) |
|
$ 77.97 | |||||
| 4 | 98005297 | Rack, Broiler |
|
- | |||||
| 5 | 98005296 | Bracket, Rack |
|
- | |||||
| 6 | 98004994 | Guide, Fixed (2) (left) |
|
- | |||||
| 6 | WPW10206639 | Guide, Fixed (2) (right) (Replaces: 98005209) |
|
$ 14.40 | |||||
| 7 | W10206642 | Guide, Mobile (2) (left) (Replaces: 98004995) |
|
$ 19.14 | |||||
| 7 | WPW10206641 | Guide, Mobile (2) (right) (Replaces: 98004954) |
|
$ 14.40 | |||||
| 8 | 3196166 | Screw, White (Replaces: 98006727) |
|
$ 6.31 | |||||
| 8 | 98008169 | Screw (biscuit) |
|
- | |||||
| 8 | WP3400832 | Screw, Black (Replaces: 98006726) |
|
Immediately | $ 6.98 | ||||
| 9 | 98004991 | Liner, Door |
|
- | |||||
| 10 | 98006209 | Storage, Drawer |
|
- | |||||
| 11 | 98004056 | Insulation, Door |
|
- | |||||
| 12 | 98009337 | Panel, Door (white) |
|
- | |||||
| 12 | 98009338 | Panel, Door (black) |
|
- | |||||
| 12 | 98009336 | Panel, Door (biscuit) |
|
- | |||||
| 13 | 98006624 | Handle, Brlr Door (black) |
|
- | |||||
| 13 | 98008266 | Handle, Brlr Door (biscuit) |
|
- | |||||
| 13 | 98006623 | Handle, Brlr Door (white) |
|
- | |||||
| 14 | 98004773 | Spacer, Handle |
|
- | |||||
| 15 | 98004052 | Bumper, Door (2) |
|
- | |||||
| 20 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 21 | 98006644 | Screw |
|
- |
