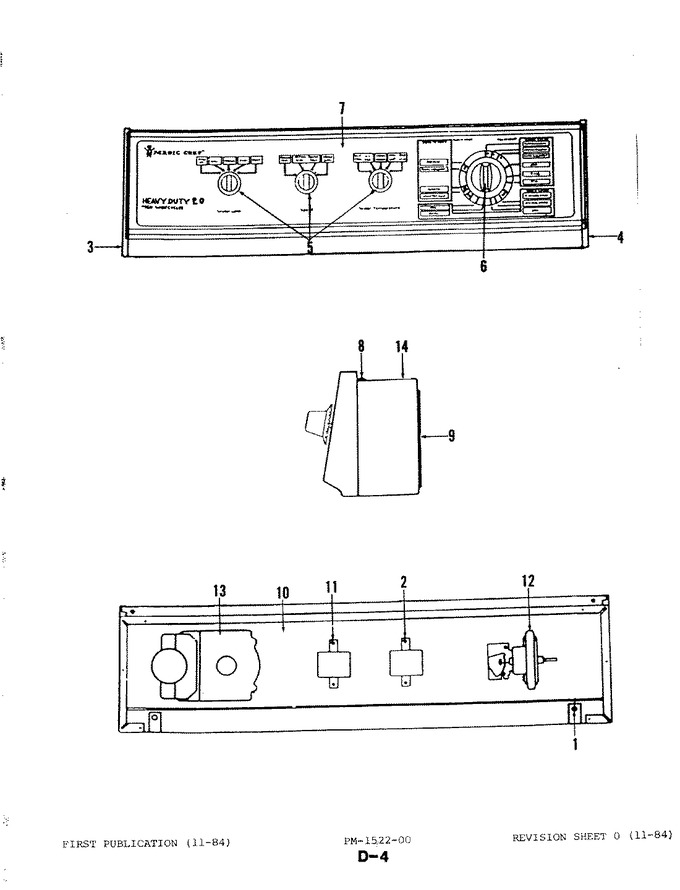

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7461 | Clip |
|
- | |||||
| 3 | 33-6765 | Lh End Cap |
|
- | |||||
| 4 | 33-6766 | Rh End Cap |
|
- | |||||
| 5 | 33-9618 | Selector Knob |
|
- | |||||
| 6 | 33-8437 | Timer Motor |
|
- | |||||
| 6 | 33-9703 | Knob Asm |
|
- | |||||
| 7 | 33-9958 | Control Panel |
|
- | |||||
| 7 | 25-7496 | Screw |
|
- | |||||
| 8 | 25-7649 | Screw |
|
- | |||||
| 8 | 25-6044 | Set Screw |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 8 | 25-0205 | Screw |
|
- | |||||
| 9 | 33-8909 | Shield |
|
- | |||||
| 10 | 33-9367 | Shield |
|
- | |||||
| 12 | 33-9732 | Pressure Switch |
|
- | |||||
| 12 | 33-6937 | Selector Switch |
|
- | |||||
| 13 | 33-8423 | Timer |
|
- | |||||
| 13 | 25-0129 | Code H |
|
- | |||||
| 14 | 33-9668-25 | Wrapper |
|
- |
