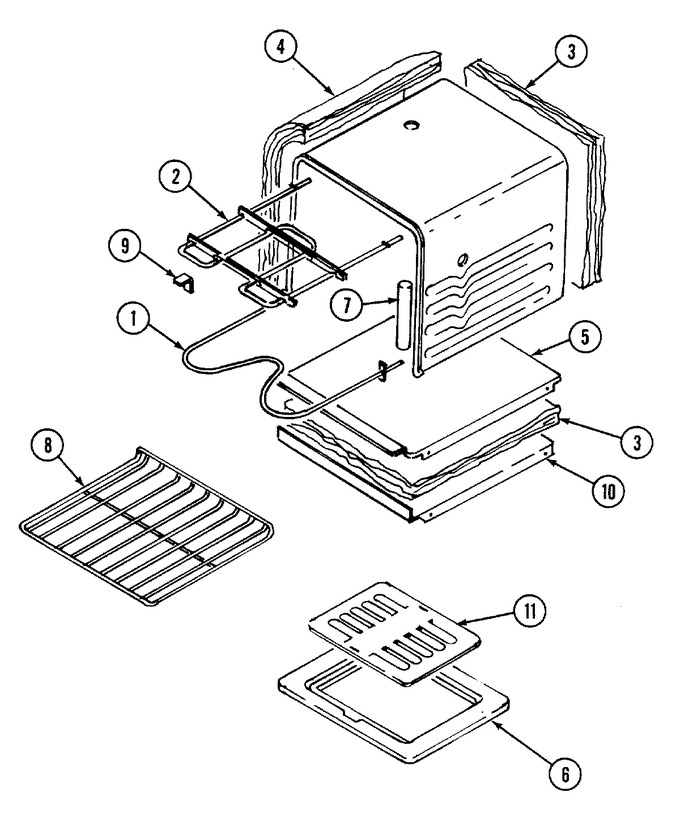

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 1 | WP74010761 | Element, Bake (Replaces: 7406P041-60) | 10 |
|
$ 108.93 | ||||
| 2 | 74003274 | Element, Broil | 10 |
|
- | ||||
| 3 | 7002P091-60 | Insulation, Oven Back | 10 |
|
- | ||||
| 4 | 7002P119-60 | Insulation, Wrap | 10 |
|
- | ||||
| 5 | 2205F013-19 | Bottom, Oven | 10 |
|
- | ||||
| 5 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 6 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 7 | 3414F084-45 | Tube, Vent | 10 |
|
- | ||||
| 7 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 8 | 7801P019-60 | Rack, Oven | 10 |
|
- | ||||
| 9 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 9 | 3807F176-19 | Support, Broil Element | 10 |
|
- | ||||
| 10 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 10 | 3807F285-51 | Support, Insulation | 10 |
|
- | ||||
| 11 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- |
