Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2371 Agitator Appelez-nous -
2 35-2062 Screw, Shoulder Type Appelez-nous -
3 WP22002933 Screw   (Replaces: 25-7914) Special Order $ 6.91

4 33-6241 Cap Appelez-nous -
5 33-8959 Gasket Appelez-nous -
6 35-2061 Gasket, Tub To Housing Appelez-nous -
7 33-8799 Reinf Plate Appelez-nous -
8 25-7783 Screw Appelez-nous -
9 35-2328 Seal, Tub Top Special Order $ 49.43

10 25-7330 Rubber Washer Appelez-nous -
11 35-2381 Basket Assy-white Appelez-nous -
12 35-2023 Tub Support Appelez-nous -
13 35-2038 Tub Appelez-nous -
13 35-2262 Shield, Tub Top Appelez-nous -
14 35-2034 Top, Tub Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

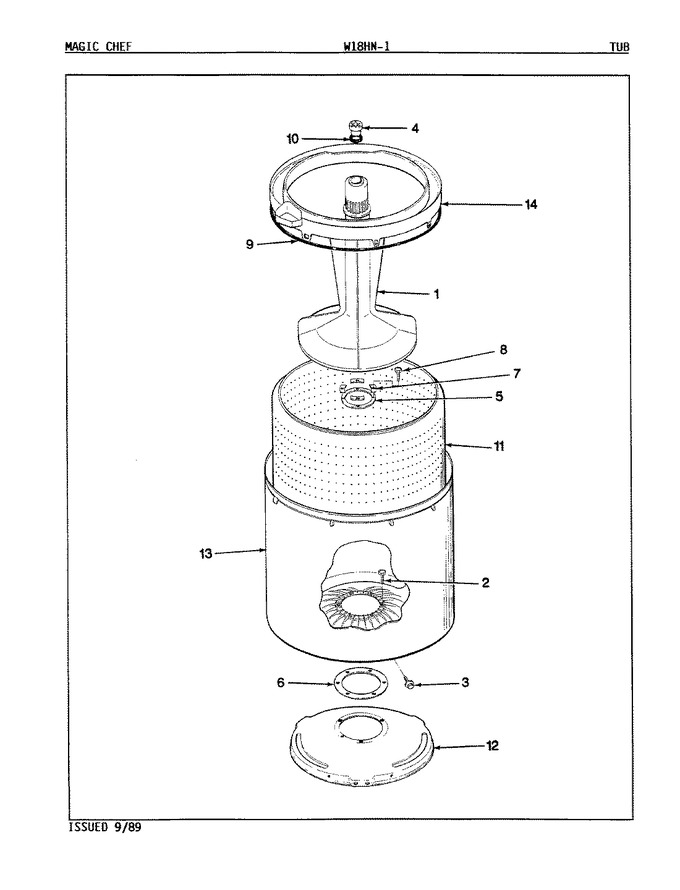

Diagram for W18HA1
