01 - Basic Body (w198w)


02 - Control Panel (w198w)


03 - Door (w198w)


04 - Fans (w198w)


05 - Fans-convection (w198w)


06 - Internal Controls (w198w)


07 - Oven Liner (w198w)

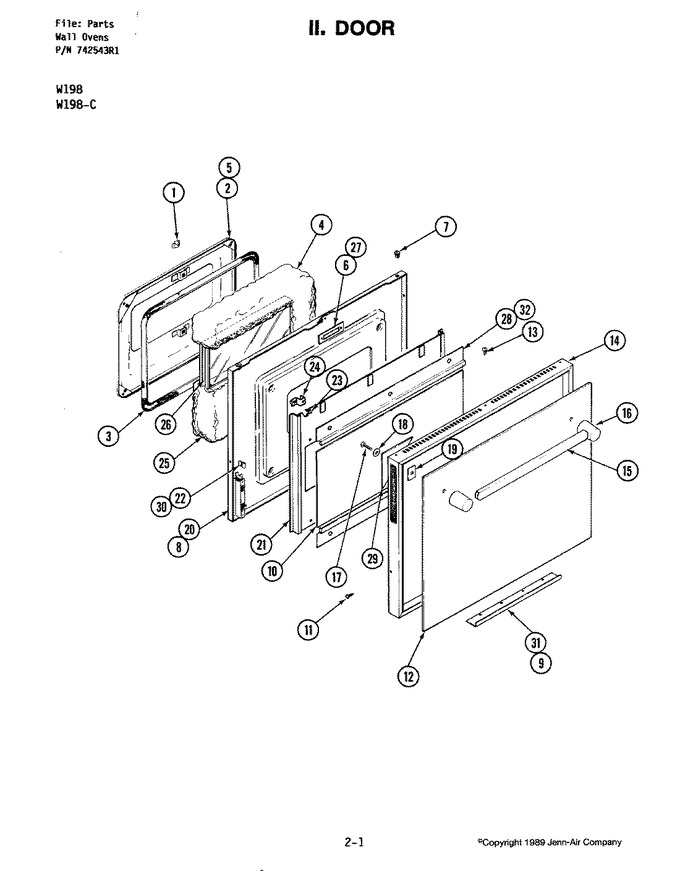

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y700503		Clip, Retainer	1	Appelez-nous	-
2	Y712174		Plug	1	Appelez-nous	-
3	WP701650		Seal, Oven Door   (Replaces: 701650)	1			$ 184.62
4	DE81-08905A		Insulation, Side   (Replaces: 701659)	1			$ 160.26
5	702279		Insulation-top & Sides	1	Appelez-nous	-
6	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
7	701643		Nut, Push In	1	Appelez-nous	-
8	DE81-07129A		Rivet, Accordion   (Replaces: 701641)	1			$ 128.48
9	Y704223		Bumper, Button	1	Appelez-nous	-
10	Y704820		Glass, Baffle	1	Appelez-nous	-
11	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
12	704919		Glass (upper)	1	Appelez-nous	-
13	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
14	704920		Frame	1	Appelez-nous	-
14	705135		Frame	1	Appelez-nous	-
15	ODH1		Handle ----na   (Replaces: 704453)	1			$ 45.63
16	Y704454		End Cap (wht)	1	Appelez-nous	-
17	Y704231		Screw	1	Appelez-nous	-
18	701736		Washer	1	Appelez-nous	-
19	Y704489		Bushing	1	Appelez-nous	-
20	712188		Liner, Door	1	Appelez-nous	-
21	712250		Baffle	1	Appelez-nous	-
22	Y700834		Clip	1	Appelez-nous	-
23	WPY706189		Screw   (Replaces: 700906)	1		Immediately	$ 6.47
24	701652		Bracket, Stand-off	1	Appelez-nous	-
25	701658		Insulation, Bottom	1	Appelez-nous	-
26	701648		Window Pack	1	Appelez-nous	-
26	703804		Pack, Window	1	Appelez-nous	-
27	WP210720		Rivet   (Replaces: 701662)	1			$ 12.14
28	Y704819		Retainer, Glass	1	Appelez-nous	-
29	704805		Gusset----na	1	Appelez-nous	-
30	704745		Screw, Flat	1	Appelez-nous	-
31	704744		Rail, Glass	1	Appelez-nous	-
32	Y700584		Screw	1	Appelez-nous	-
