01 - Cover
02 - Cabinet Front & Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

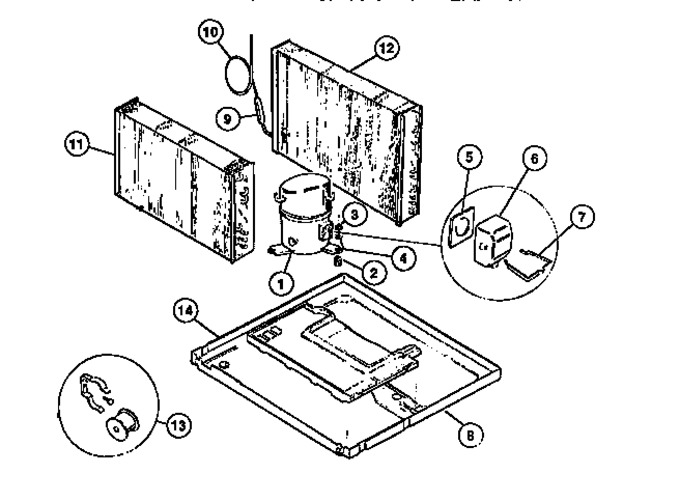

| 1 | 5303203580 | Compressor |
|
- | |||||
| 2 | 5303001777 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 4 | 5303002664 | Washer |
|
- | |||||
| 5 | 5303002068 | Gasket - Cover |
|
- | |||||
| 6 | 5303002067 | Cover |
|
- | |||||
| 7 | 5303002069 | Strap-bale |
|
- | |||||
| 8 | 5303015327 | Base |
|
- | |||||
| 9 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 10 | 5303018217 | Tube-capillary (cut To 40``) (2) |
|
- | |||||
| 11 | 5303016182 | Evaporator |
|
- | |||||
| 12 | 5303209984 | Condenser |
|
- | |||||
| 13 | 5303201723 | Start Kit |
|
- | |||||
| 14 | 5303208665 | Tray-evaporator |
|
- | |||||
| 14 | 5303209196 | Grommet Drain (non-illustrated) |
|
- |
