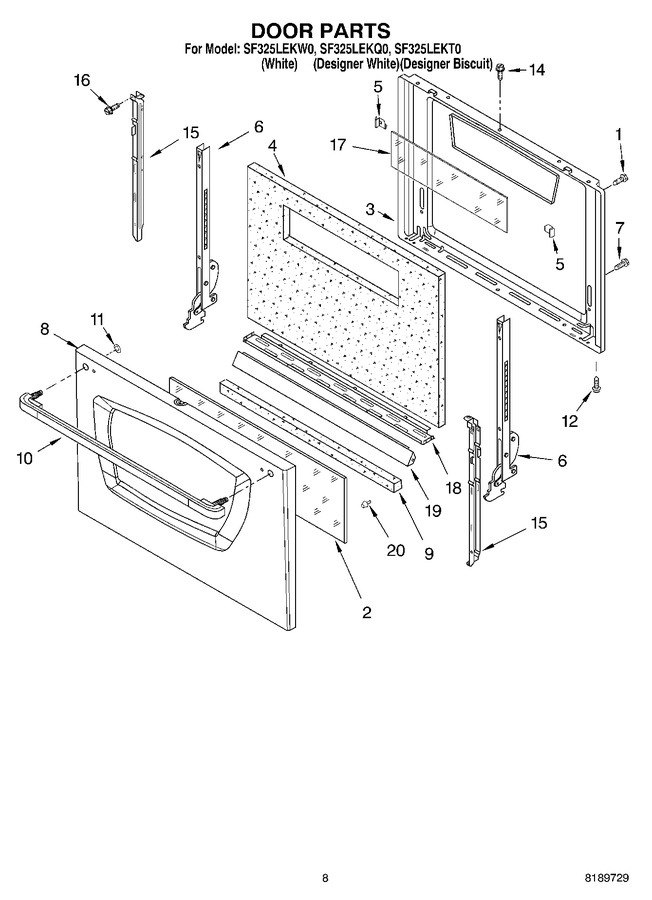

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Backguard


03 - Manifold


04 - Chassis


05 - Oven And Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98004218		Screw   (Replaces: 98004218)				$ 6.95
2	98004084		Glass, Outer		Appelez-nous	-
3	98010182		Liner, Door		Appelez-nous	-
4	98006753		Insulation, Door		Appelez-nous	-
5	98004953		Clip, Glass (right)		Appelez-nous	-
5	98004952		Clip, Glass (left)		Appelez-nous	-
6	98004734		Hinge, Door (2)		Appelez-nous	-
7	W11206744		Screw   (Replaces: 98008699)				$ 12.20
8	98009496		Panel, Door (white)		Appelez-nous	-
8	98009499		Panel, Door (black)		Appelez-nous	-
8	98009502		Panel, Door (biscuit)		Appelez-nous	-
9	98007185		Insulation		Appelez-nous	-
10	W10819915		Handle, Oven Door (black)   (Replaces: 98006180)		Appelez-nous	-
10	WP98006181		Handle, Oven Door (white)   (Replaces: 98006181)				$ 178.58
10	98008289		Handle, Oven Door (biscuit)		Appelez-nous	-
11	WP98004650		Nut, Push   (Replaces: 98004650)				$ 6.26
12	WP59002061		Screw   (Replaces: 98004993)				$ 6.98
14	3196166		Screw, White   (Replaces: 98006727)				$ 6.31
14	98008169		Screw (biscuit)		Appelez-nous	-
14	WP3400832		Screw, Black   (Replaces: 98006726)			Immediately	$ 6.98
15	98004629		Retainer (left)		Appelez-nous	-
15	98004564		Retainer (right)		Appelez-nous	-
16	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
17	WP98006801		Glass, Inner   (Replaces: 98006801)				$ 139.86
18	98004938		Insulation, Retainer-top		Appelez-nous	-
19	98004965		Insulation, Retainer-bottom		Appelez-nous	-
20	814381		Pin Kit-dr Removal				$ 7.73
20	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
20	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
20	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
20	549193		Clamp   (Replaces: 98005894)				$ 12.05
20	98005915		Clip, Wire		Appelez-nous	-
20	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
20	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
20	350942		Primer (white)   (Replaces: 206922)				$ 80.69
20	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
20	978883		Almond (uncut)		Appelez-nous	-
20	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
20	98007059		Anti-tip Kit		Appelez-nous	-
20	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
20	98004723		Bumper   (Replaces: 98004979)		Appelez-nous	-
20	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
20	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
20	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
20	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
20	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
20	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
20	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
20	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
20	242831		Wire (14 Ga. 200 C Red)				$ 342.23
20	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
20	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
20	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
20	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
20	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
20	261582		Grease		Appelez-nous	-
20	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
20	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
20	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
20	W11582239		Cord, Power   (Replaces: 98005822)				$ 15.08
20	98005561		Harness, Switch		Appelez-nous	-
20	6610241		Harness, Control		Appelez-nous	-
20	98005896		Clip, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
