SELECT A DIAGRAM

01 - Base


02 - Control Panel


03 - Pump


04 - Transmission


05 - Tub


06 - Wiring Information

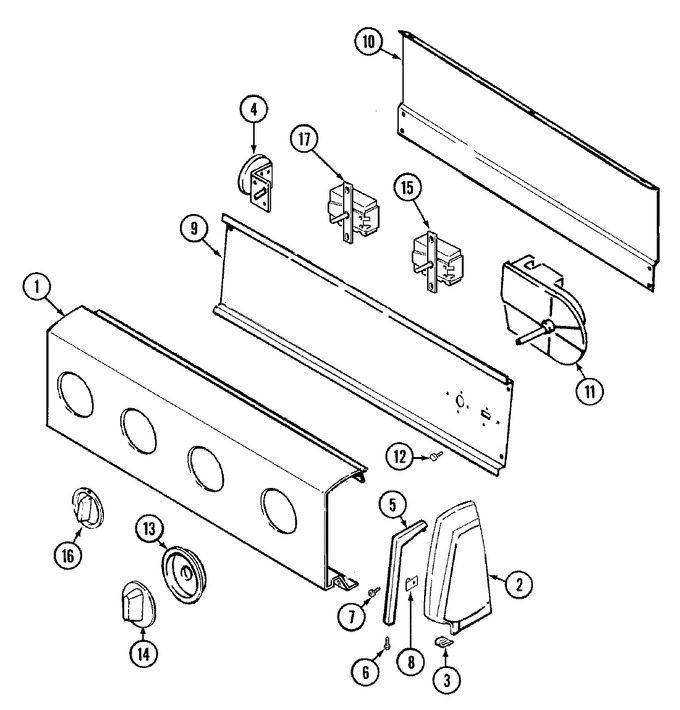

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7496		Screw		Appelez-nous	-
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	35-3924		Panel, Control		Appelez-nous	-
2	35-2488		Cap, End (lt)		Appelez-nous	-
2	35-2487		Cap, End (rt)		Appelez-nous	-
3	34-9487		Plate, Reinforcement		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
4	WP21001554		Switch, Water Level   (Replaces: 35-3691)				$ 143.59
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
5	53-2413		End Trim L.h. (blk)		Appelez-nous	-
5	53-2412		End Trim R.h. (blk)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
9	53-2504		Spacer, Control Shield		Appelez-nous	-
9	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-1676		Shield, Control		Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
11	35-3838		Timer		Appelez-nous	-
12	25-0205		Screw		Appelez-nous	-
13	35-3964		Skirt & Ring Assy.		Appelez-nous	-
14	35-3962		Knob, Timer		Appelez-nous	-
15	35-3856		Switch, Temp		Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
16	35-3960		Knob, Selector		Appelez-nous	-
17	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
17	35-3859		Switch, Speed		Appelez-nous	-
18	21001053		Manual, Use & Care		Appelez-nous	-
19	21001050		Manual, Use & Care		Appelez-nous	-
20	16000329		Guide, Quick Ref. - Magic Chef		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
