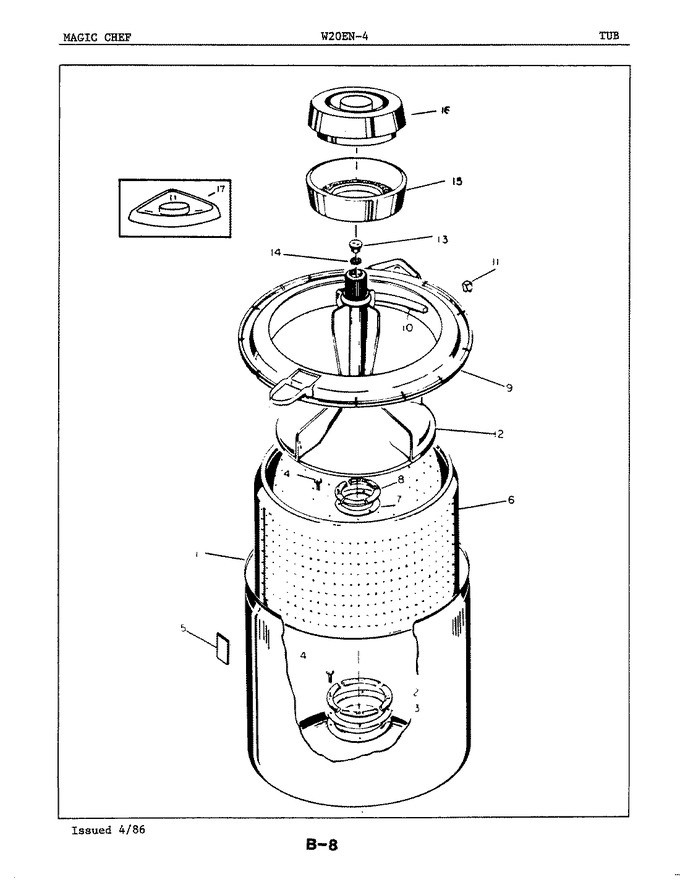

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33-9392		Tub Assembly		Appelez-nous	-
2	33-8800		Plate		Appelez-nous	-
3	33-6905		Gasket		Appelez-nous	-
4	25-7783		Screw		Appelez-nous	-
5	33-3232		Pad		Appelez-nous	-
6	33-9566		Basket Asm		Appelez-nous	-
6	35-0004		Basket Asm	A	Appelez-nous	-
7	33-6902		Gasket		Appelez-nous	-
7	33-8959		Gasket	A	Appelez-nous	-
8	33-8799		Reinf Plate		Appelez-nous	-
9	35-0537		Tub Top		Appelez-nous	-
10	33-3055		Gasket		Appelez-nous	-
11	25-7748		Clip		Appelez-nous	-
12	35-0049		Agitator		Appelez-nous	-
13	33-6241		Cap		Appelez-nous	-
14	25-7330		Rubber Washer		Appelez-nous	-
15	33-9888		Lint Filter		Appelez-nous	-
16	33-9827		Rinse Dispenser		Appelez-nous	-
17	35-0345		Insert M/w		Appelez-nous	-
17	33-9906		Body, Bleach Dispenser		Appelez-nous	-
