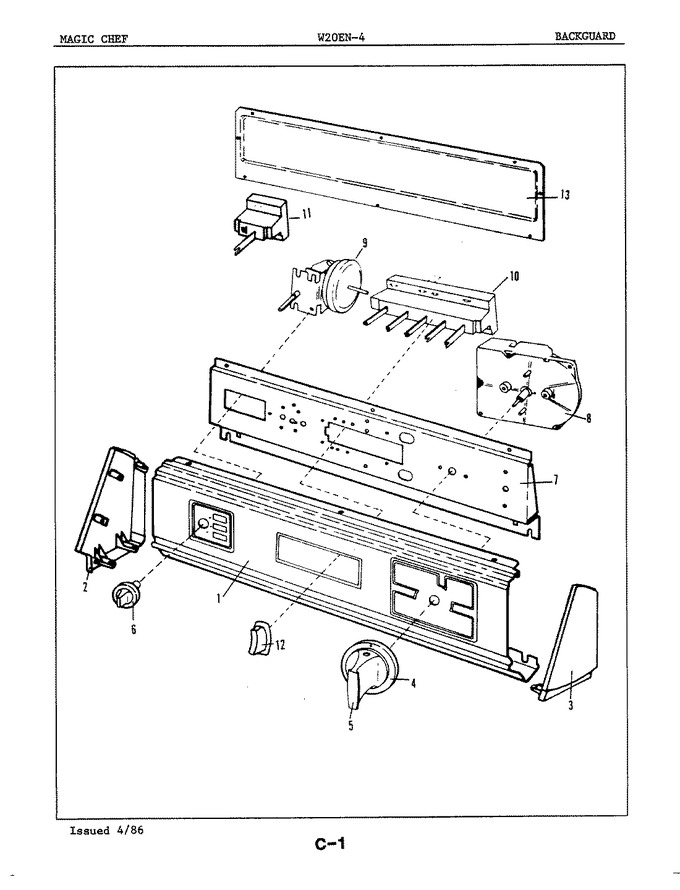

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7793		Screw		Appelez-nous	-
1	35-0265		Control Panel		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
3	53-0277		Trim, End Cap (rt)		Appelez-nous	-
3	25-7760		Screw		Appelez-nous	-
3	53-0278		Trim, End Cap (lt)		Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
3	53-0264		Rh Endcap		Appelez-nous	-
4	35-0384		Knob Asm		Appelez-nous	-
5	35-0498		Timer Knob	B	Appelez-nous	-
5	35-0149		Timer Knob		Appelez-nous	-
5	25-6044		Set Screw		Appelez-nous	-
6	35-0452		Selector Knob		Appelez-nous	-
7	53-0267		Control Shield		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	35-0116		Timer Mtr 3/5rpm		Appelez-nous	-
8	35-0157		Timer		Appelez-nous	-
8	35-0489		Timer	B	Appelez-nous	-
8	WP489483		Screw   (Replaces: 25-0088)				$ 9.78
9	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	35-0112		Pressure Switch		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
10	25-7713		Screw		Appelez-nous	-
10	33-6620		Bracket		Appelez-nous	-
10	33-8540		Switch Pad		Appelez-nous	-
10	33-9989		Selector Switch		Appelez-nous	-
11	25-7712		Screw		Appelez-nous	-
11	33-6621		Bracket, Switch		Appelez-nous	-
11	33-8541		Switch Pad		Appelez-nous	-
11	33-9914		Pb Switch		Appelez-nous	-
12	35-0385		Pushbutton		Appelez-nous	-
13	53-0268		Rear Shield		Appelez-nous	-
13	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
13	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
13	25-7697		Screw		Appelez-nous	-
13	25-7592		Screw		Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
13	34-9487		Plate, Reinforcement		Appelez-nous	-
