01 - Base & Drive
02 - Control Panel
03 - Exterior
04 - Transmission
05 - Tub
06 - Water Carrying
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

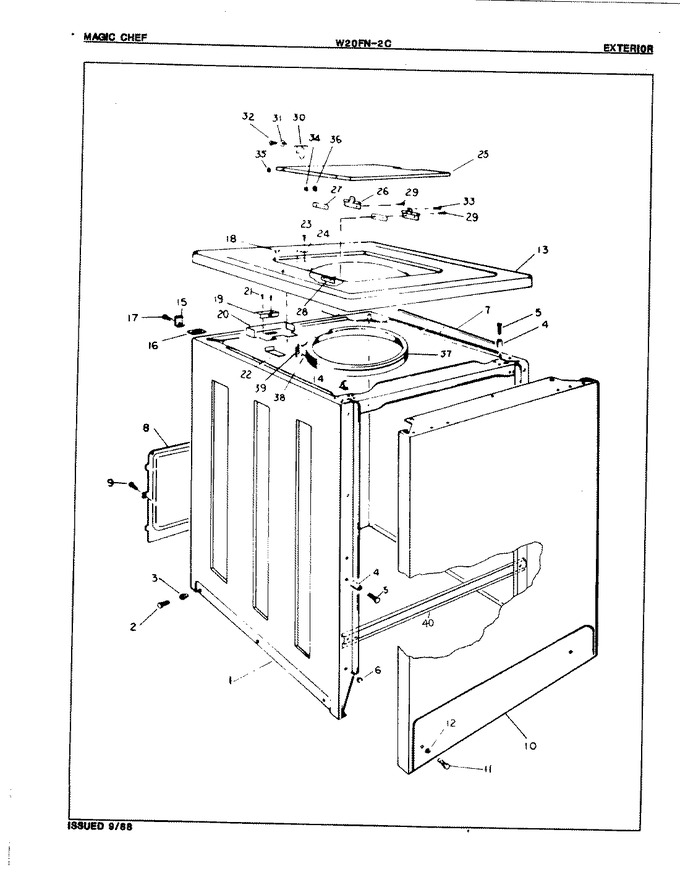

| 1 | 35-0061-24 | Cabinet Body |
|
- | |||||
| 2 | WP308685 | Screw (Replaces: 25-7001) |
|
Immediately | $ 7.08 | ||||
| 3 | 33-2088 | Sleeve |
|
- | |||||
| 3 | 25-7883 | Screw |
|
- | |||||
| 3 | 25-7071 | Lockwasher |
|
- | |||||
| 4 | 34-9701 | Guide, Cabinet |
|
- | |||||
| 5 | 25-6109 | Screw |
|
- | |||||
| 6 | 33-2653 | Bumper, Cabinet |
|
- | |||||
| 7 | 33-9948 | Cushion Strip |
|
- | |||||
| 8 | 33-8687 | Rear Shield |
|
- | |||||
| 9 | 25-2000 | Screw |
|
- | |||||
| 10 | 35-0056-24 | Front Panel |
|
- | |||||
| 11 | WP308685 | Screw (Replaces: 25-7001) |
|
Immediately | $ 7.08 | ||||
| 12 | 25-7071 | Lockwasher |
|
- | |||||
| 13 | 35-0586-24 | Cabinet Top |
|
- | |||||
| 14 | 25-7285 | Clip |
|
- | |||||
| 15 | 35-2846 | Hinge (Replaces: 33-7450) |
|
$ 22.94 | |||||
| 16 | 33-0930 | Pad, Top Hinge |
|
- | |||||
| 17 | WP681414 | Screw (Replaces: 25-7732) |
|
Immediately | $ 7.07 | ||||
| 18 | 33-2653 | Bumper, Cabinet |
|
- | |||||
| 18 | 33-9064 | Door Switch Asm |
|
- | |||||
| 19 | 33-8911 | Door Switch |
|
- | |||||
| 20 | 33-8289 | Bracket |
|
- | |||||
| 21 | 25-7437 | Screw |
|
- | |||||
| 22 | 25-7878 | Clip |
|
- | |||||
| 22 | 33-9063 | Door Switch Lever |
|
- | |||||
| 23 | 25-7463 | Screw |
|
- | |||||
| 24 | 25-7436 | Nylite Washer |
|
- | |||||
| 25 | 35-0581 | Bumper, Door (lid) |
|
- | |||||
| 25 | 33-7929-24 | Clothes Door |
|
- | |||||
| 26 | 33-6956 | Hinge |
|
- | |||||
| 27 | 33-6957 | Hinge Pad |
|
- | |||||
| 28 | 33-8058 | Speednut |
|
- | |||||
| 29 | 25-7455 | Screw |
|
- | |||||
| 30 | WP43-0057 | Actuator, Door Switch (Replaces: 43-0057) |
|
$ 73.22 | |||||
| 31 | 25-7436 | Nylite Washer |
|
- | |||||
| 32 | 25-7438 | Screw |
|
- | |||||
| 33 | 25-7455 | Screw |
|
- | |||||
| 34 | 25-7086 | Washer |
|
- | |||||
| 35 | 25-7436 | Nylite Washer |
|
- | |||||
| 36 | 25-8057 | Plastic Nut |
|
- | |||||
| 37 | 35-0697 | Splashguard |
|
- | |||||
| 38 | 35-0050 | Retaining Ring |
|
- | |||||
| 39 | 33-0767 | Spring |
|
- | |||||
| 40 | 35-0663 | Cabt Brace |
|
- | |||||
| 40 | WP3196557 | Screw, 8-18x3/8 Tyab But (Replaces: 25-7752) |
|
Immediately | $ 7.16 |
