02 - Oven , Literature
03 - Manifold

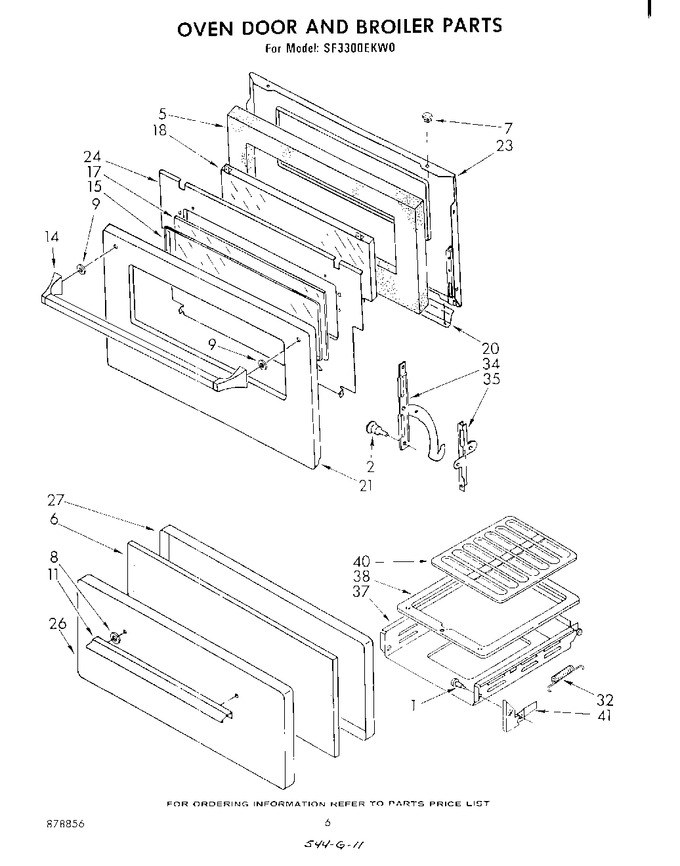

04 - Oven Door And Broiler
05 - Backguard
06 - Cook Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 878079 | Bolt, Shoulder 10-24 X 7/16 (2) |
|
- | |||||
| 2 | 878080 | Bolt, Shoulder 10-24 X 7/16 (2) |
|
- | |||||
| 5 | WPW10208653 | Insulation, Oven Door (Replaces: 878089) |
|
Immediately | $ 49.92 | ||||
| 6 | 878090 | Insulation, Broiler Door |
|
- | |||||
| 7 | 878095 | Nut, Expansion (6) |
|
- | |||||
| 8 | 878097 | Spacer, Door Handle (2) |
|
- | |||||
| 9 | 878763 | Spacer, Oven Door Handle (2) |
|
- | |||||
| 11 | 878728 | Handle, Broiler Door |
|
- | |||||
| 14 | 878790 | Handle, Oven Door |
|
- | |||||
| 15 | 878729 | Bezel, Oven Door |
|
- | |||||
| 17 | 878730 | Glass, Oven Door (outside) |
|
- | |||||
| 18 | 878000 | Glass, Oven Door |
|
- | |||||
| 20 | 878472 | Strip, Door Seal |
|
- | |||||
| 21 | 878786 | Panel, Oven Door (almond) |
|
- | |||||
| 21 | 879093 | Panel, Oven Door (toast) |
|
- | |||||
| 21 | 878879 | Panel, Oven Door (harvest Gold) |
|
- | |||||
| 21 | 878788 | Panel, Oven Door (white) |
|
- | |||||
| 21 | 878787 | Panel, Oven Door (coffee) |
|
- | |||||
| 21 | 879094 | Panel, Oven Door (platinum) |
|
- | |||||
| 23 | 878731 | Lining, Oven Door |
|
- | |||||
| 24 | 878785 | Baffle, Door |
|
- | |||||
| 26 | 878474 | Panel, Broiler Door (harvest Gold) |
|
- | |||||
| 26 | 878147 | Panel, Broiler Door (white) |
|
- | |||||
| 26 | 879085 | Panel, Broiler Door (toast) |
|
- | |||||
| 26 | 878475 | Panel, Broiler Door (black) |
|
- | |||||
| 26 | 879086 | Panel, Broiler Door (platinum) |
|
- | |||||
| 26 | 878148 | Panel, Broiler Door (almond) |
|
- | |||||
| 26 | 878473 | Panel, Broiler Door (coffee) |
|
- | |||||
| 27 | 878149 | Lining, Broiler Door |
|
- | |||||
| 32 | 878165 | Spring, Broiler Door (2) |
|
- | |||||
| 34 | 878167 | Hinge, Oven Door (2) |
|
- | |||||
| 35 | 878169 | Support, Oven Door (right Side) |
|
- | |||||
| 35 | 878168 | Support, Oven Door (left Side) |
|
- | |||||
| 37 | 878172 | Drawer, Broiler |
|
- | |||||
| 38 | 878173 | Pan, Broiler |
|
- | |||||
| 40 | 878174 | Tray, Broiler Pan |
|
- | |||||
| 41 | 878184 | Hinge, Broiler Door (right Side) |
|
- | |||||
| 41 | 878183 | Hinge, Broiler Door (left Side) |
|
- |
