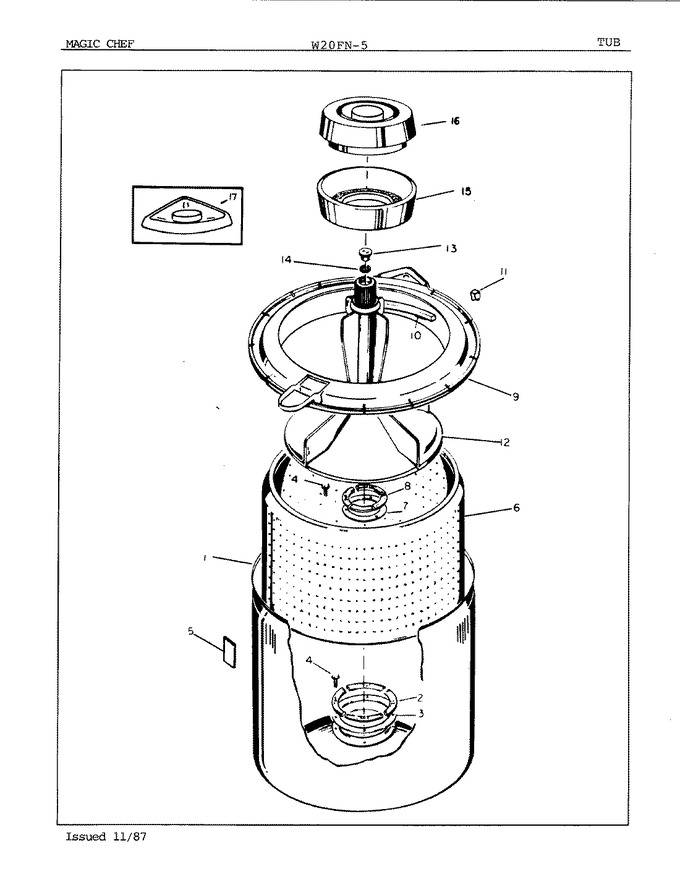

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33-9392 | Tub Assembly |
|
- | |||||
| 2 | 33-8800 | Plate |
|
- | |||||
| 3 | 33-6905 | Gasket |
|
- | |||||
| 4 | 25-7783 | Screw |
|
- | |||||
| 5 | 35-0538 | Pad |
|
- | |||||
| 6 | 35-0723 | Basket Asm |
|
- | |||||
| 7 | 33-8959 | Gasket |
|
- | |||||
| 8 | 33-8799 | Reinf Plate |
|
- | |||||
| 9 | 35-0537 | Tub Top |
|
- | |||||
| 10 | 33-3055 | Gasket |
|
- | |||||
| 11 | 25-7748 | Clip |
|
- | |||||
| 12 | 35-0049 | Agitator |
|
- | |||||
| 13 | 33-6241 | Cap |
|
- | |||||
| 14 | 25-7330 | Rubber Washer |
|
- | |||||
| 15 | 33-9888 | Lint Filter |
|
- | |||||
| 16 | 33-9827 | Rinse Dispenser |
|
- | |||||
| 17 | 33-9906 | Body, Bleach Dispenser |
|
- |
