01 - Base & Drive
02 - Control Panel
03 - Exterior
04 - Transmission
05 - Tub

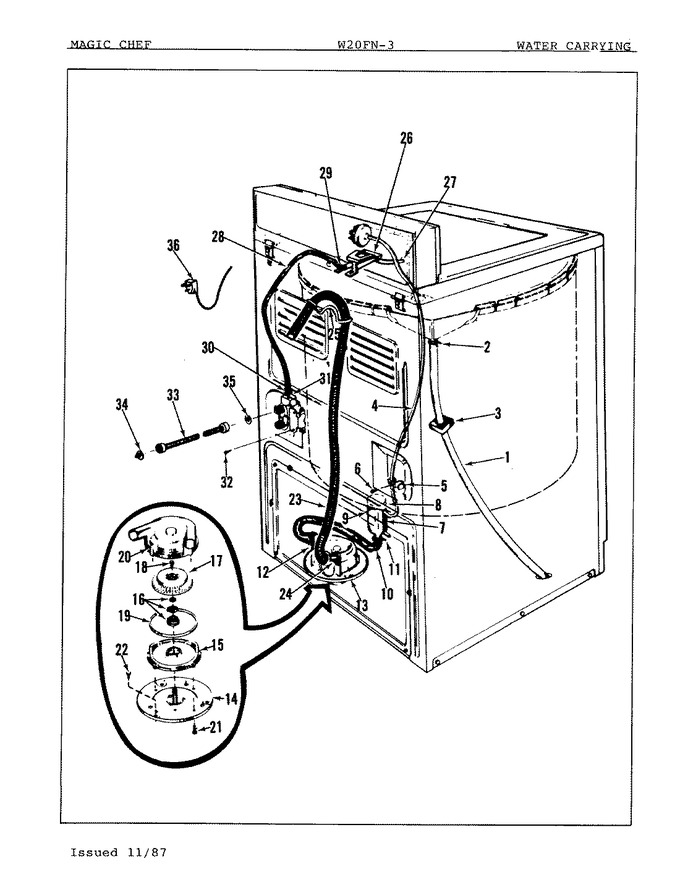

06 - Water Carrying
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-0059 | Overflow Hose |
|
- | |||||
| 2 | 25-6057 | Hose Clamp |
|
- | |||||
| 3 | 35-0706 | Pad, Foam |
|
- | |||||
| 4 | WP596669 | Clamp, Pressure Switch Hose (Replaces: 25-7796) |
|
Immediately | $ 7.56 | ||||
| 4 | 33-4090 | Hose |
|
- | |||||
| 5 | 33-6099 | Clamp |
|
- | |||||
| 7 | 33-7314 | Sump Asm |
|
- | |||||
| 8 | 33-3633 | Hose |
|
- | |||||
| 9 | 25-7003 | Clamp |
|
- | |||||
| 10 | 33-6091 | Hose |
|
- | |||||
| 11 | 25-6066 | Hose Clamp |
|
- | |||||
| 12 | 25-6055 | Hose Clamp |
|
- | |||||
| 13 | 35-0008 | Water Pump |
|
- | |||||
| 13 | 35-1069 | Pump Assy Fab | A |
|
- | ||||
| 14 | 33-6035 | Plate & Pulley Assy. |
|
- | |||||
| 15 | 33-6029 | Pump Base |
|
- | |||||
| 16 | 35-0707 | Seal, Seat & ``o`` Ring |
|
- | |||||
| 17 | 35-0010 | Impeller |
|
- | |||||
| 18 | WP308544 | Screw Purchase (Replaces: 25-7418) |
|
Immediately | $ 6.98 | ||||
| 19 | 33-6032 | Gasket |
|
- | |||||
| 20 | 35-0009 | Pump Housing |
|
- | |||||
| 21 | WP3196164 | Screw (Replaces: 25-7405) |
|
Immediately | $ 7.82 | ||||
| 22 | 25-7419 | Screw |
|
- | |||||
| 23 | 25-7048 | Washer |
|
- | |||||
| 23 | 33-9535 | Discharge Hose |
|
- | |||||
| 24 | 33-9536 | Hose Adapter |
|
- | |||||
| 24 | WP285655 | Hose Clamp (Replaces: 25-7881) |
|
Immediately | $ 7.55 | ||||
| 25 | 33-9537 | Retainer |
|
- | |||||
| 25 | WP285655 | Clamp (Replaces: 25-7797) |
|
Immediately | $ 7.55 | ||||
| 26 | 25-7086 | Washer |
|
- | |||||
| 26 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 26 | 33-9830 | Inlet Flume |
|
- | |||||
| 26 | 33-8057 | Plastic Nut |
|
- | |||||
| 27 | 33-6038 | Flume Ext |
|
- | |||||
| 28 | 35-0541 | Watr Inlet Hose |
|
- | |||||
| 29 | WP596669 | Clamp (Replaces: 25-7867) |
|
Immediately | $ 7.56 | ||||
| 30 | WP489503 | Hose Clamp (Replaces: 25-7866) |
|
Immediately | $ 9.68 | ||||
| 31 | 35-2374N | Mixing Valve (Replaces: 35-0085) |
|
$ 276.92 | |||||
| 31 | 33-7058 | Sub 36-1456 |
|
- | |||||
| 32 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 33 | WP89503 | Hose, 4` Inlet (Replaces: 33-7891) |
|
Immediately | $ 21.68 | ||||
| 34 | 33-7313 | Strainer, Hose |
|
- | |||||
| 35 | 25-7048 | Washer |
|
- | |||||
| 36 | 35-0680 | Cord, Power |
|
- |
