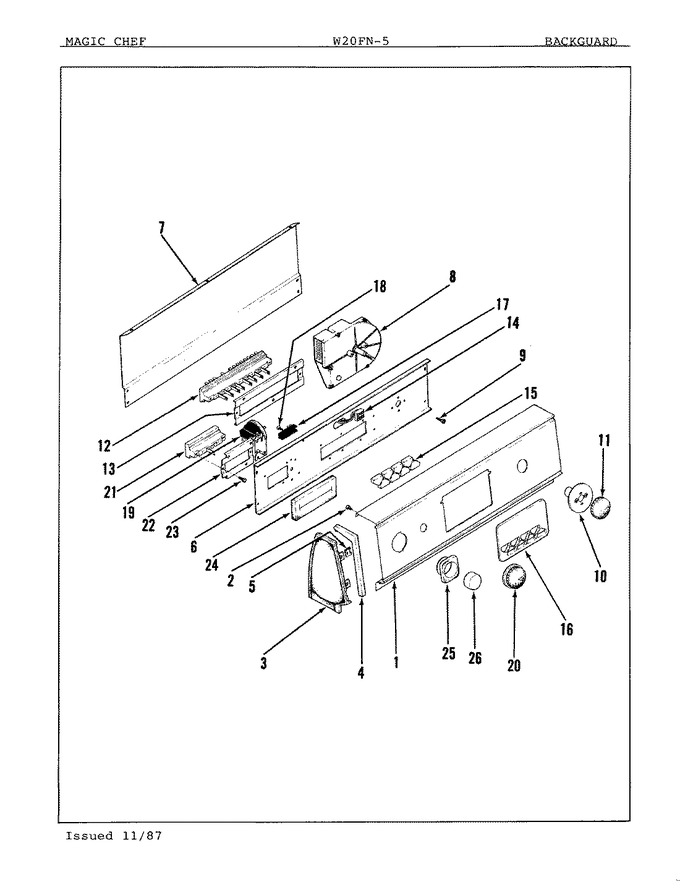

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-0687		Control Panel		Appelez-nous	-
2	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
2	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
3	53-0265		Lh Endcap		Appelez-nous	-
3	53-0264		Rh Endcap		Appelez-nous	-
3	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
3	25-7697		Screw		Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
3	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
3	34-9487		Plate, Reinforcement		Appelez-nous	-
3	25-7649		Screw		Appelez-nous	-
4	25-7760		Screw		Appelez-nous	-
4	53-0278		Trim, End Cap (lt)		Appelez-nous	-
4	53-0277		Trim, End Cap (rt)		Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
5	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
6	35-0686-1		Control Shield		Appelez-nous	-
7	25-7583		Plastic Nut		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
7	53-0268		Rear Shield		Appelez-nous	-
7	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
8	35-0116		Timer Mtr 3/5rpm		Appelez-nous	-
8	35-0728		Timer		Appelez-nous	-
9	WP489483		Screw   (Replaces: 25-0088)				$ 9.78
10	35-0679		Knob Asm		Appelez-nous	-
11	35-0676		Timer Knob		Appelez-nous	-
12	35-0689		Pb Switch		Appelez-nous	-
13	33-6623		Bracket		Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	35-0691-02		Signal Light		Appelez-nous	-
14	35-0691-03		Signal Light		Appelez-nous	-
14	35-0691-04		Signal Light		Appelez-nous	-
14	35-0691-01		Signal Light		Appelez-nous	-
15	35-0682-06		Pushbutton		Appelez-nous	-
15	35-0682-01		Pushbutton		Appelez-nous	-
15	35-0682-07		Pushbutton		Appelez-nous	-
15	35-0682-02		Pushbutton		Appelez-nous	-
15	35-0682-03		Pushbutton		Appelez-nous	-
15	35-0682-04		Pushbutton		Appelez-nous	-
15	35-0682-05		Pushbutton		Appelez-nous	-
16	35-0692		Lens		Appelez-nous	-
16	25-7882		Palnut		Appelez-nous	-
16	35-0690		Lens		Appelez-nous	-
16	35-0685		Pb Bezel		Appelez-nous	-
17	35-0279		Selector Knob		Appelez-nous	-
18	25-7649		Screw		Appelez-nous	-
19	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
19	35-0782		Pressure Switch		Appelez-nous	-
20	53-0849		Selector Knob - Fab		Appelez-nous	-
21	35-0688		Pb Switch		Appelez-nous	-
22	33-6621		Bracket, Switch		Appelez-nous	-
23	25-7712		Screw		Appelez-nous	-
23	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
24	33-8541		Switch Pad		Appelez-nous	-
25	35-0684		Pb Bezel		Appelez-nous	-
26	35-0683		Pushbutton		Appelez-nous	-
