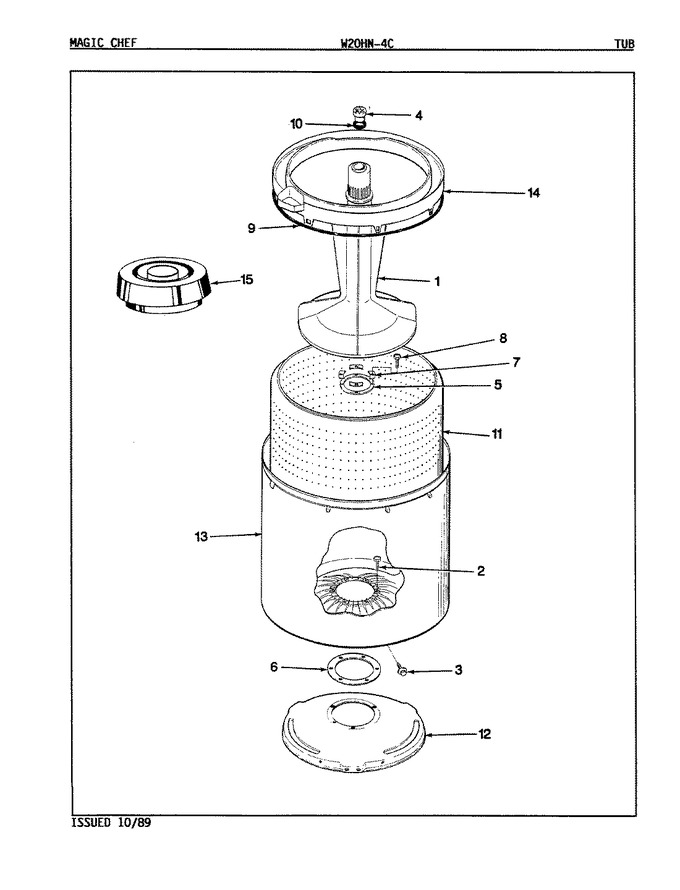

04 - Tub (rev. A-b)
05 - Water Carrying & Pump Assy. (rev. A-b)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-2371 | Agitator |
|
- | |||||
| 1 | 35-2456 | Agitator | A |
|
- | ||||
| 2 | 35-2062 | Screw, Shoulder Type |
|
- | |||||
| 3 | WP22002933 | Screw (Replaces: 25-7914) |
|
$ 6.91 | |||||
| 4 | 33-6241 | Cap |
|
- | |||||
| 5 | 33-8959 | Gasket |
|
- | |||||
| 6 | 35-2061 | Gasket, Tub To Housing |
|
- | |||||
| 7 | 33-8799 | Reinf Plate |
|
- | |||||
| 8 | 25-7783 | Screw |
|
- | |||||
| 9 | 35-2328 | Seal, Tub Top |
|
$ 49.43 | |||||
| 10 | 25-7330 | Rubber Washer |
|
- | |||||
| 11 | 35-2508 | Basket White | A |
|
- | ||||
| 11 | 35-2381 | Basket Assy-white |
|
- | |||||
| 12 | 35-2023 | Tub Support |
|
- | |||||
| 13 | 35-2038 | Tub |
|
- | |||||
| 14 | 35-2034 | Top, Tub |
|
- | |||||
| 14 | 35-2262 | Shield, Tub Top |
|
- | |||||
| 15 | 35-2550 | Dispenser, Rinse | A |
|
- | ||||
| 15 | 33-9827 | Rinse Dispenser |
|
- |
