New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

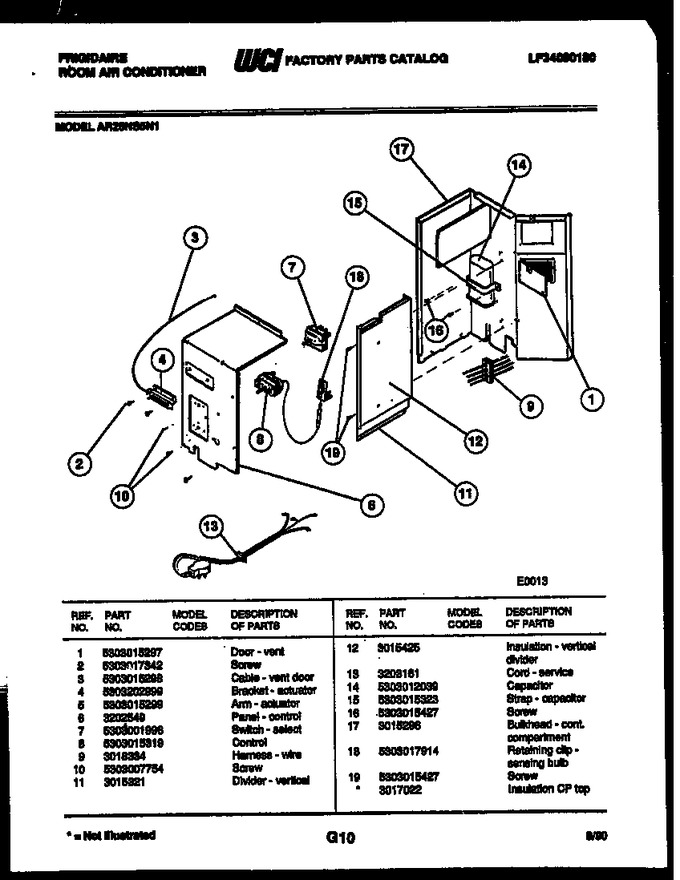

| 1 | 5303015297 | Door-vent |
|
- | |||||
| 2 | 5303017342 | Screw |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 5 | 5303015299 | Arm - Actuator |
|
- | |||||
| 6 | 3202549 | Panel - Control |
|
- | |||||
| 7 | 5303001996 | Switch - Select |
|
- | |||||
| 8 | 5303015319 | Control |
|
- | |||||
| 9 | 3018334 | Harness - Wire |
|
- | |||||
| 10 | 5303007754 | Screw |
|
- | |||||
| 11 | 3015321 | Divider - Vertical |
|
- | |||||
| 12 | 3015425 | Insulation - Vertical Divider |
|
- | |||||
| 13 | 3203161 | Cord - Service |
|
- | |||||
| 14 | 5303012039 | Capacitor |
|
- | |||||
| 15 | 5303015323 | Strap-capacitor |
|
- | |||||
| 16 | 5303015427 | Screw |
|
- | |||||
| 17 | 3015296 | Bulkhead-cont Compartment |
|
- | |||||
| 18 | 5303017914 | Retaining Clip - Sensing Bulb |
|
- | |||||
| 19 | 5303015427 | Screw |
|
- | |||||
| *32014 | 3017022 | Insulation Cp Top |
|
- |
