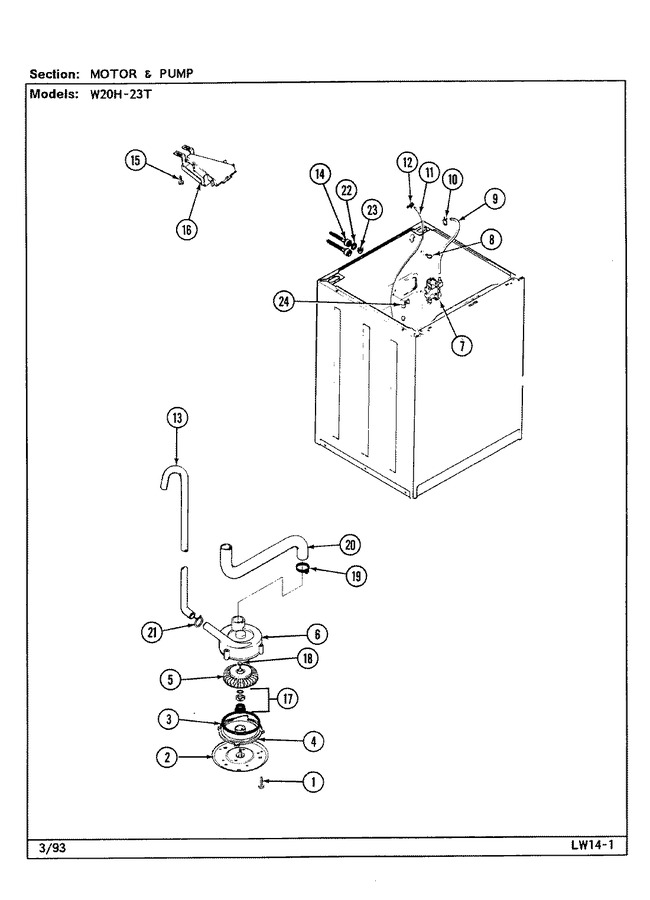

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3196164 | Screw (Replaces: 25-7405) |
|
Immediately | $ 7.82 | ||||
| 2 | 33-6035 | Plate & Pulley Assy. |
|
- | |||||
| 3 | 33-6032 | Gasket |
|
- | |||||
| 4 | 35-2058 | Base, Pump |
|
- | |||||
| 5 | WP35-6465 | Impeller (Replaces: 35-2057) |
|
Immediately | $ 119.24 | ||||
| 6 | WP35-6465 | Pump Assy (complete) (Replaces: 35-2099) |
|
Immediately | $ 119.24 | ||||
| 6 | 35-2056 | Housing, Pump |
|
- | |||||
| 7 | WP25-7220 | Clip, Cabinet Top (Replaces: 25-7220) |
|
$ 10.77 | |||||
| 7 | 35-2374N | Valve, Water Mixing (60hz) (Replaces: 35-2376) |
|
$ 276.92 | |||||
| 8 | WP596669 | Clamp (Replaces: 25-7867) |
|
Immediately | $ 7.56 | ||||
| 9 | 12002749 | Hose, Flume/diverter (rubber) (Replaces: 35-2378) |
|
$ 25.97 | |||||
| 10 | WP596669 | Clamp (Replaces: 25-7867) |
|
Immediately | $ 7.56 | ||||
| 11 | 35-2322 | Hose, Pressure Switch |
|
- | |||||
| 11 | 35-2261 | Pad, Pressure Switch Hose |
|
- | |||||
| 12 | 33-6099 | Clamp |
|
- | |||||
| 13 | 35-2896 | Drain Hose |
|
- | |||||
| 14 | W11629055 | Hose, Inlet (Replaces: 35-0874) |
|
$ 24.93 | |||||
| 14 | WP89503 | Hose, 5` Inlet (Replaces: 33-7046) |
|
Immediately | $ 21.68 | ||||
| 15 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 16 | 35-2051 | Flume, Water Inlet |
|
- | |||||
| 17 | 35-0707 | Seal, Seat & ``o`` Ring |
|
- | |||||
| 18 | WPW10001180 | Screw (Replaces: 25-7894) |
|
$ 7.23 | |||||
| 19 | WP285655 | Clamp, Hose (Replaces: 25-6068) |
|
Immediately | $ 7.55 | ||||
| 20 | WP21001915 | Hose, Tub To Pump (Replaces: 35-3584) |
|
Immediately | $ 31.01 | ||||
| 21 | WP285655 | Clamp, Discharge Hose (Replaces: 25-7080) |
|
Immediately | $ 7.55 | ||||
| 22 | 25-7048 | Washer |
|
- | |||||
| 23 | 33-7313 | Strainer, Hose |
|
- | |||||
| 24 | WP596669 | Clamp, Pressure Switch Hose (Replaces: 25-7796) |
|
Immediately | $ 7.56 |
